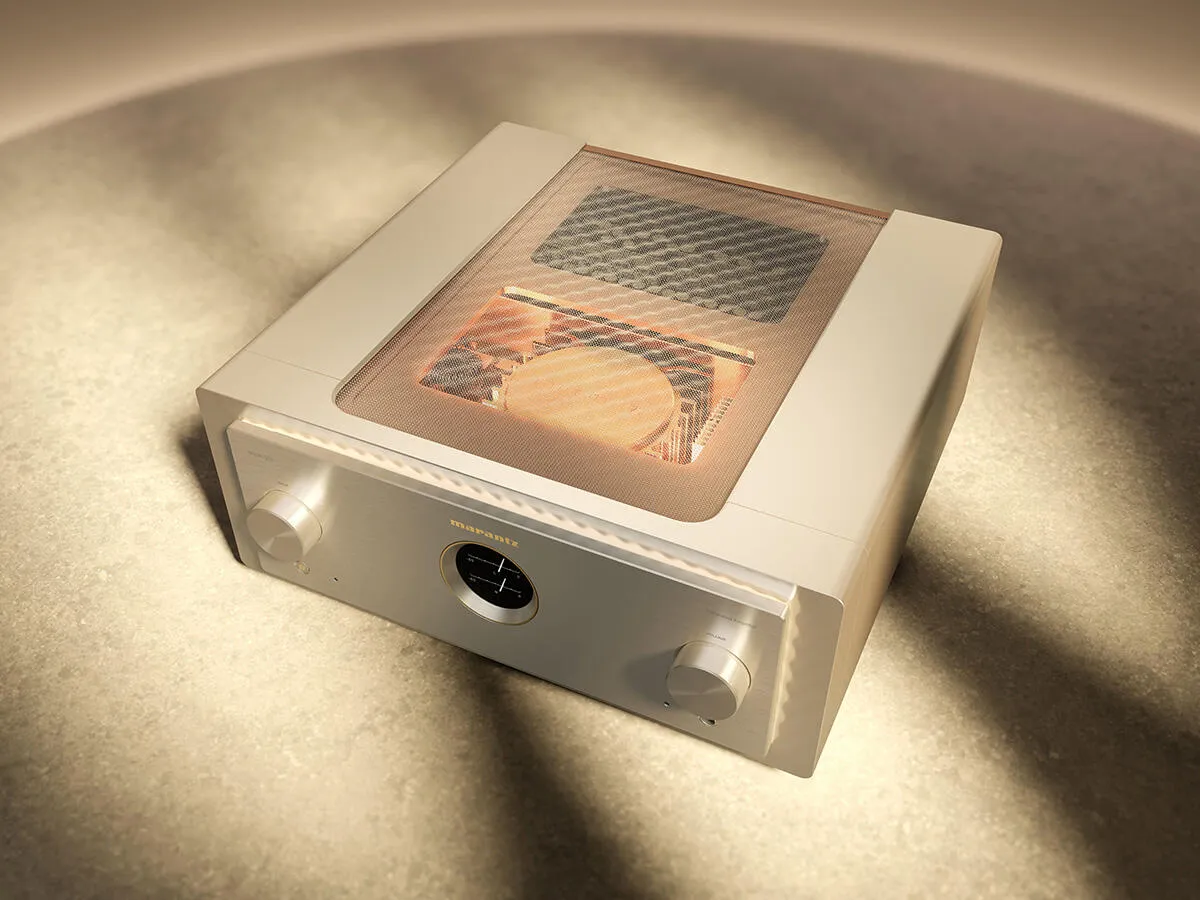

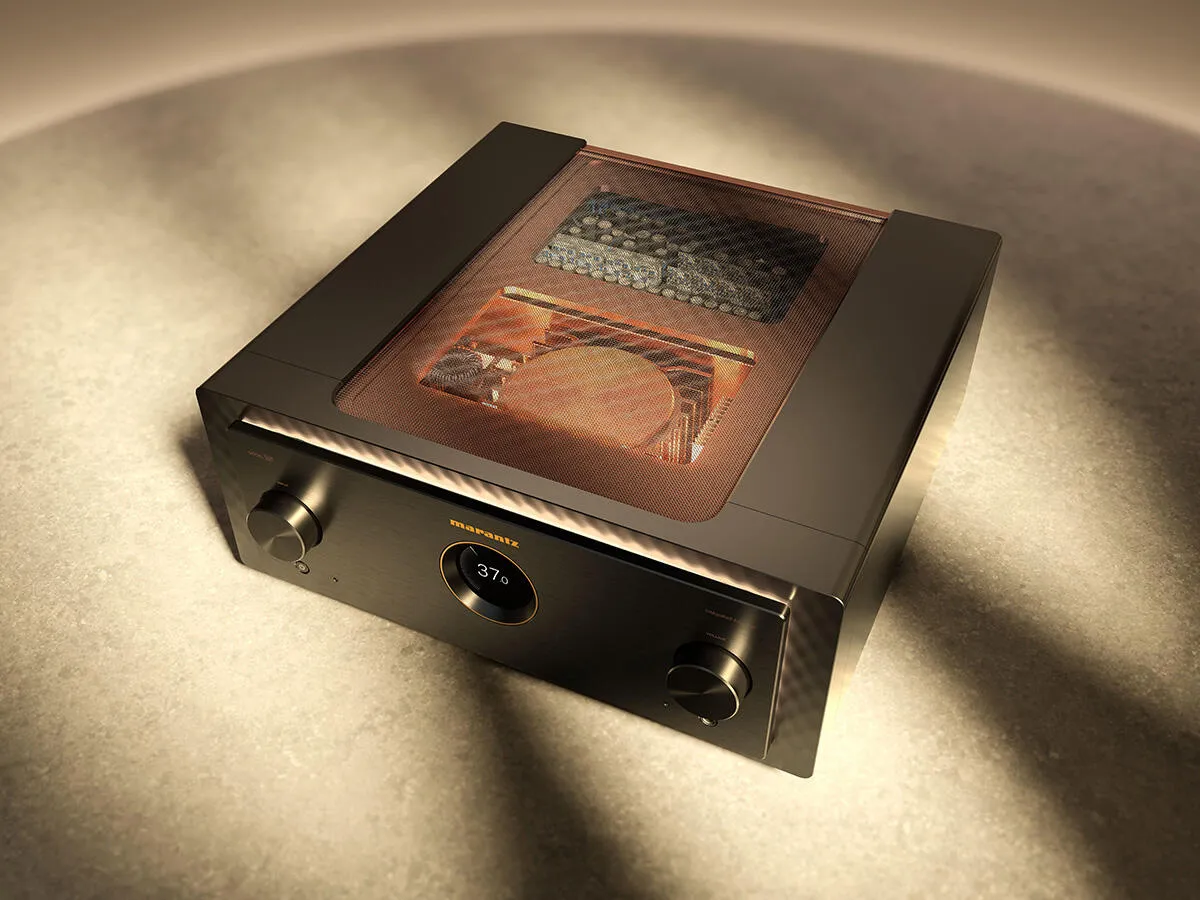

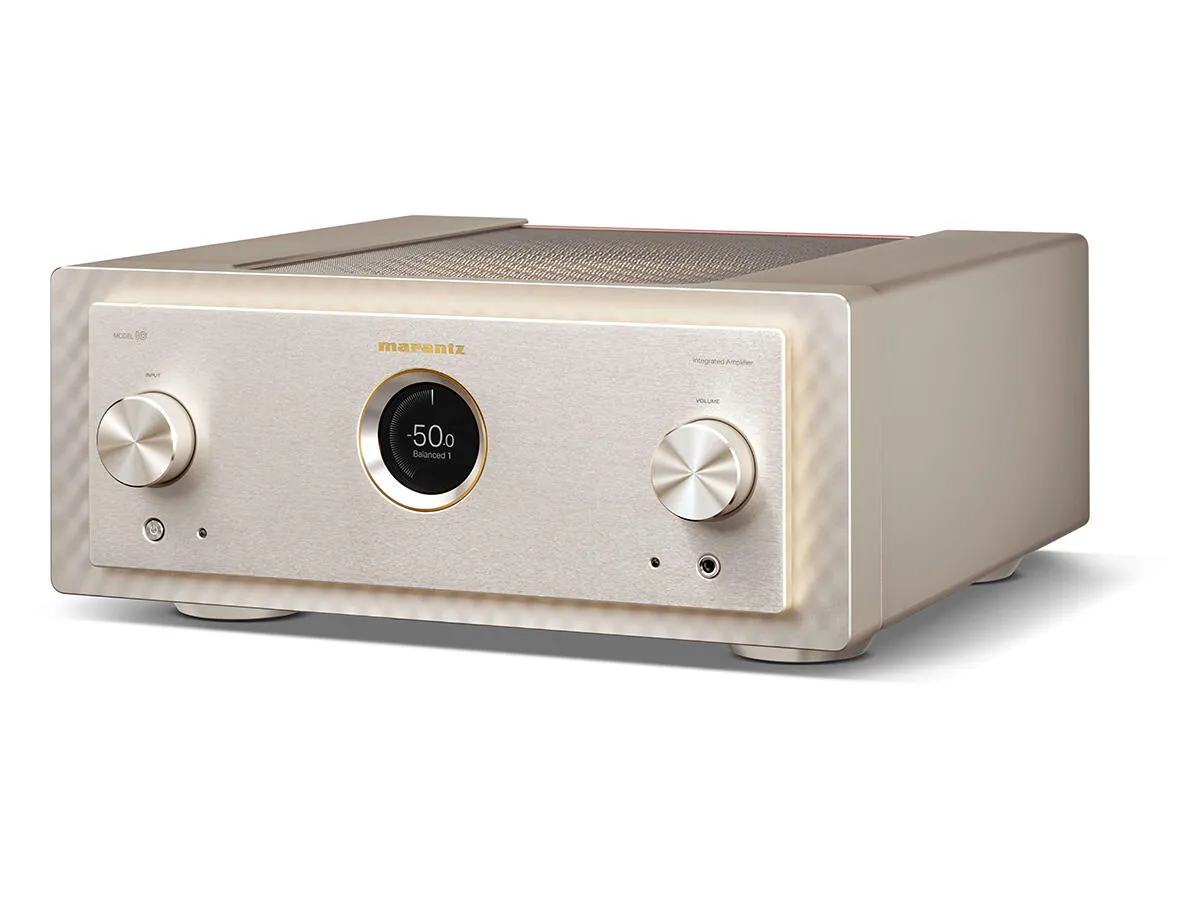

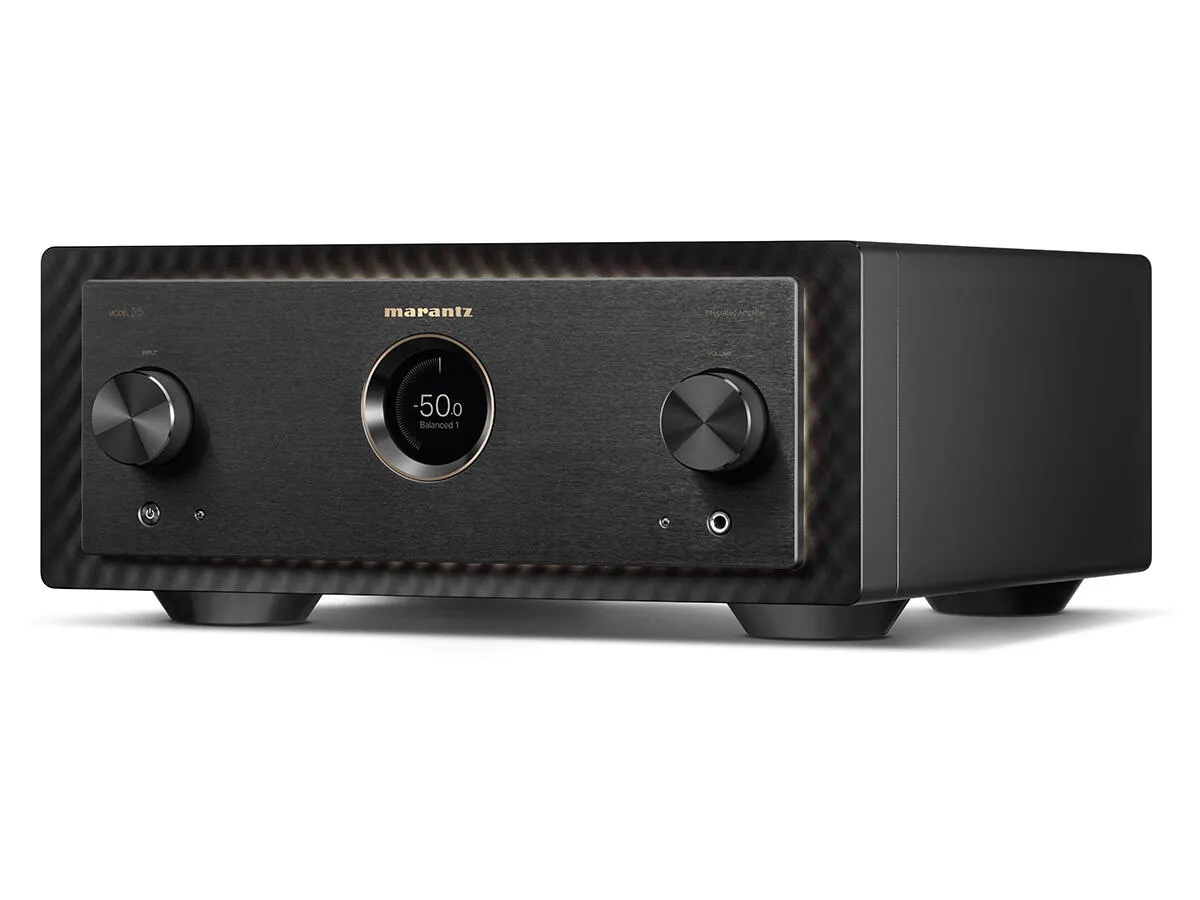

MODEL 10 Reference Integrated Amplifier
MODEL 10 is the new reference in amplifier design. Featuring a newly designed dual-mono symmetrical amplifier topology, it is the most powerful, highest performing Marantz amplifier ever.
- 2 × 250 watts (8 ohm) / 2 × 500 watts (4 ohm) 20Hz–20kHz
- New Marantz-engineered amplifier platform with Purifi technology
- Fully balanced dual mono amplifiers including all-new dual mono switch-mode power supplies
- Power Amplifier mode with preamplifier bypass
- Analog In (RCA), Phono (MM/MC), Line 1, Line 2, Recorder In/Out
- Balanced and single-ended inputs and outputs
- Phono MM/MC with settings for low, medium, and high output cartridges
- Headphone amplifier

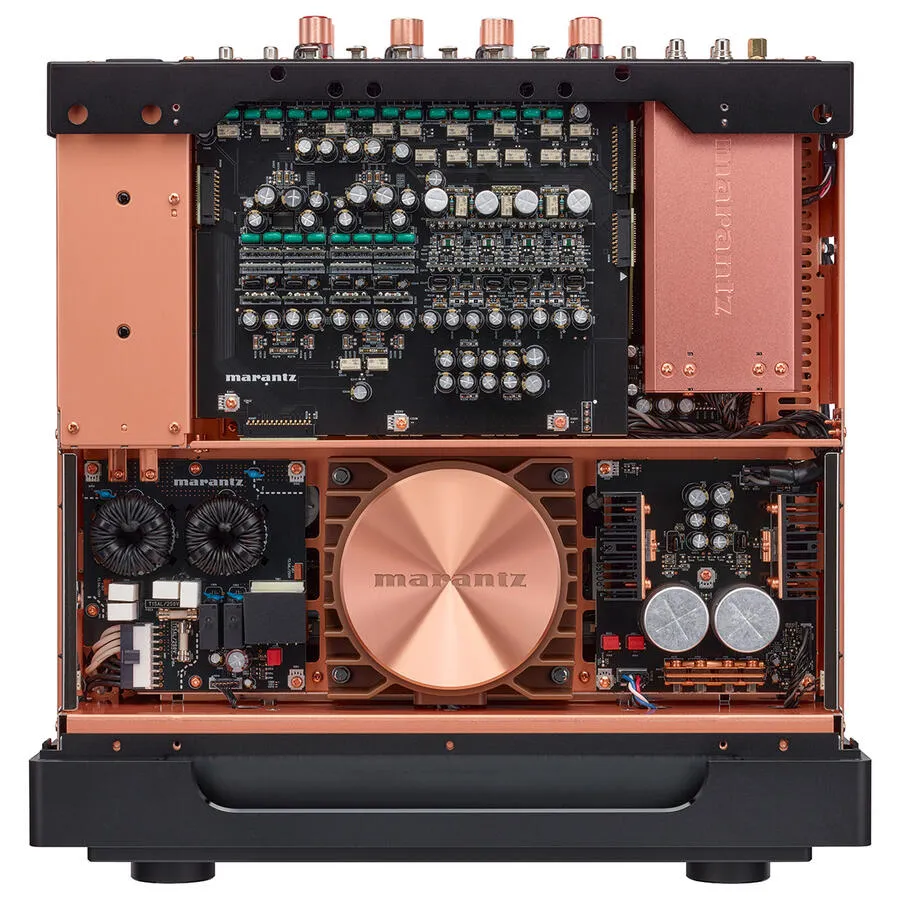

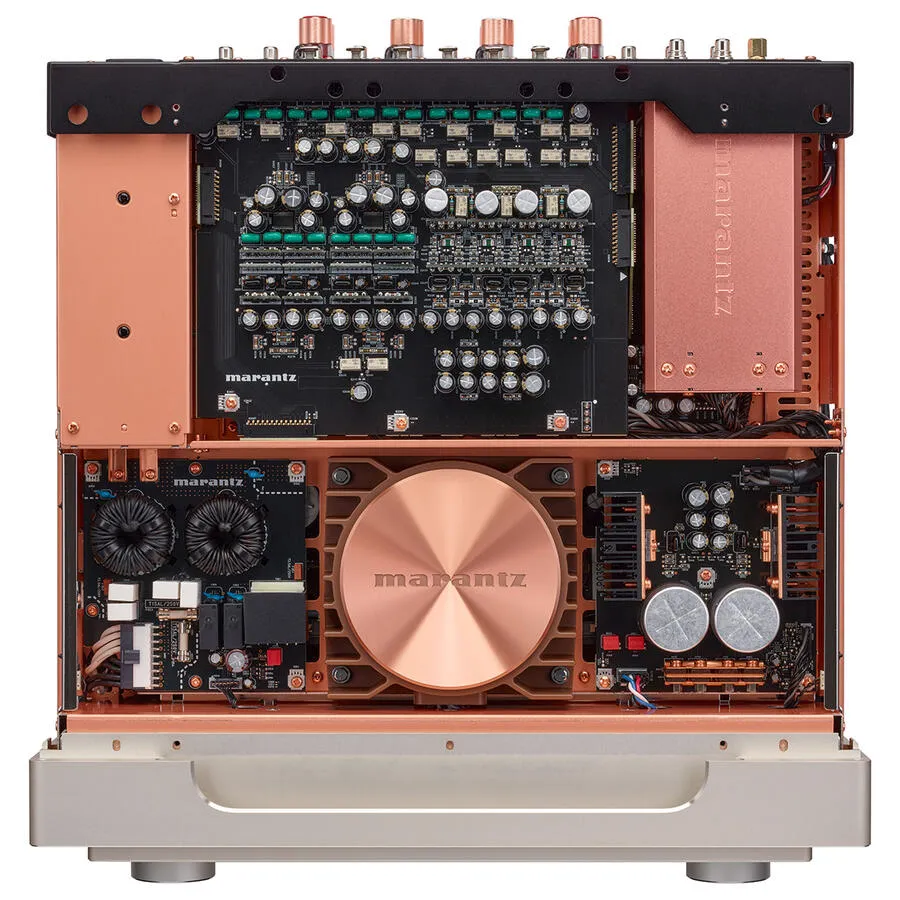

- Copper-plated, triple-layered, symmetrical separation chassis isolates high power from low power circuits for superb noise immunity

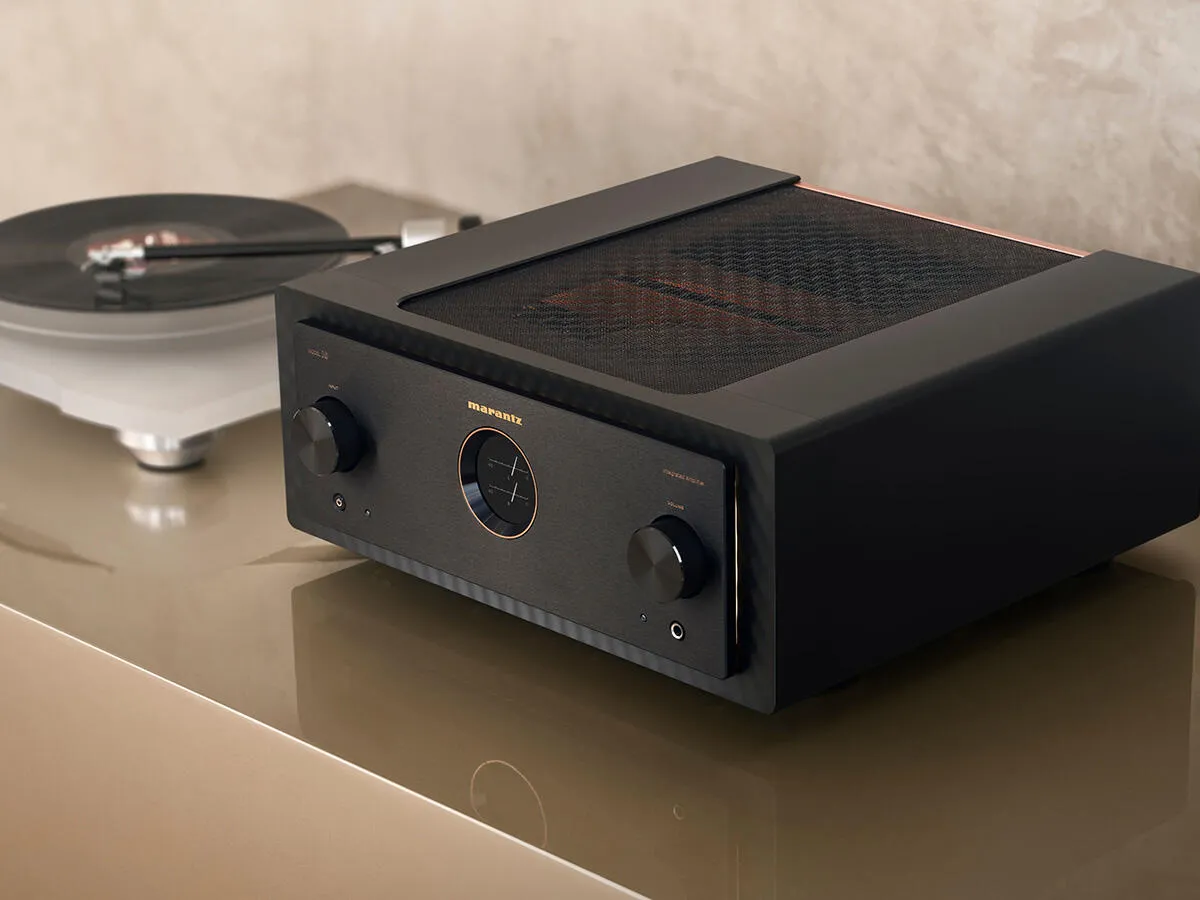

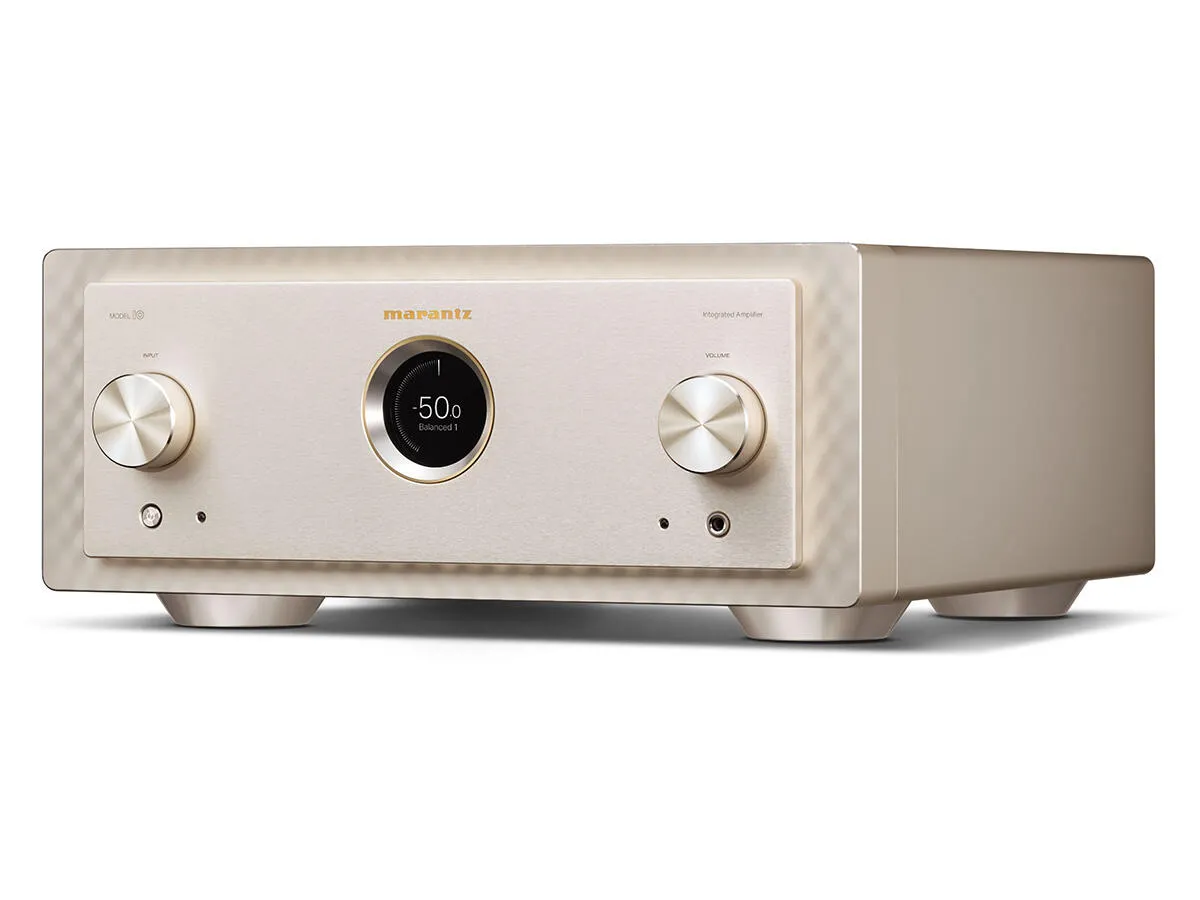

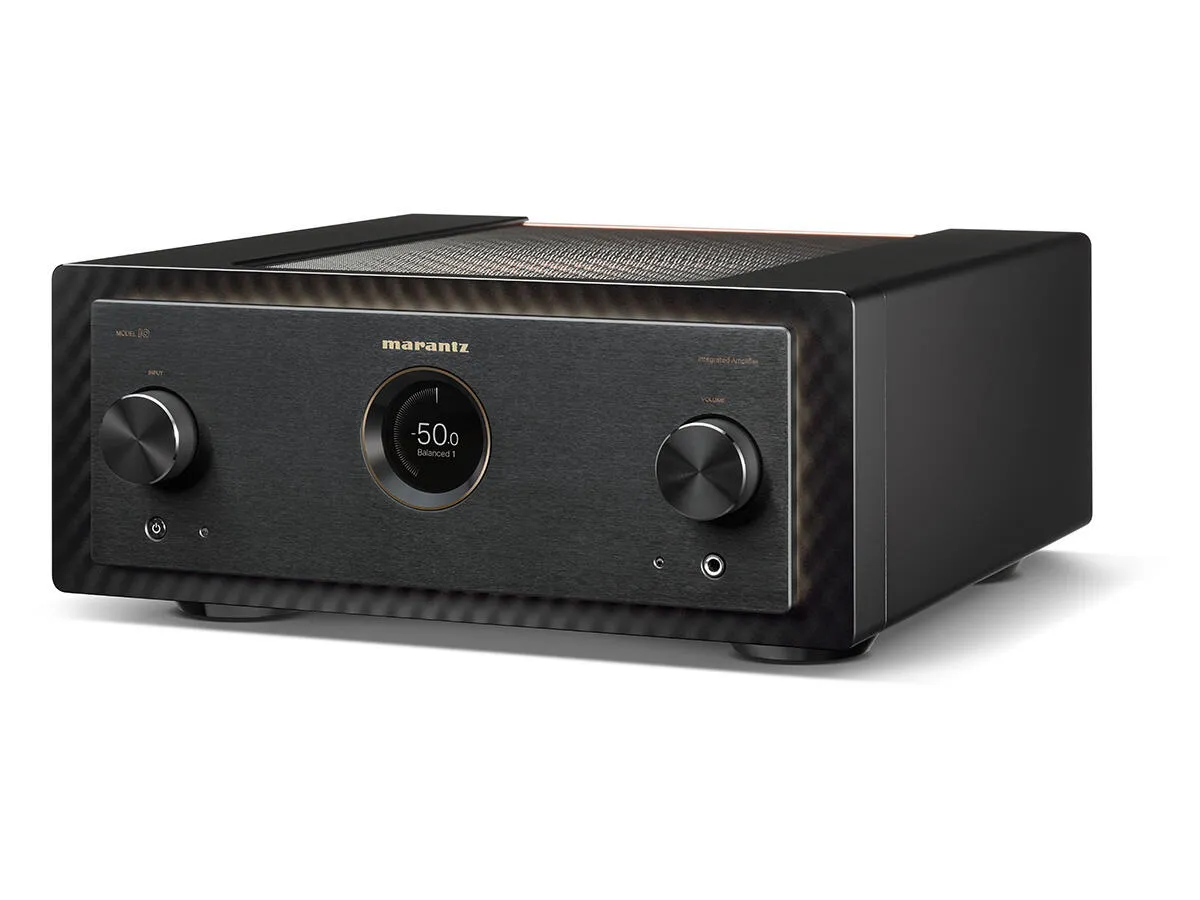

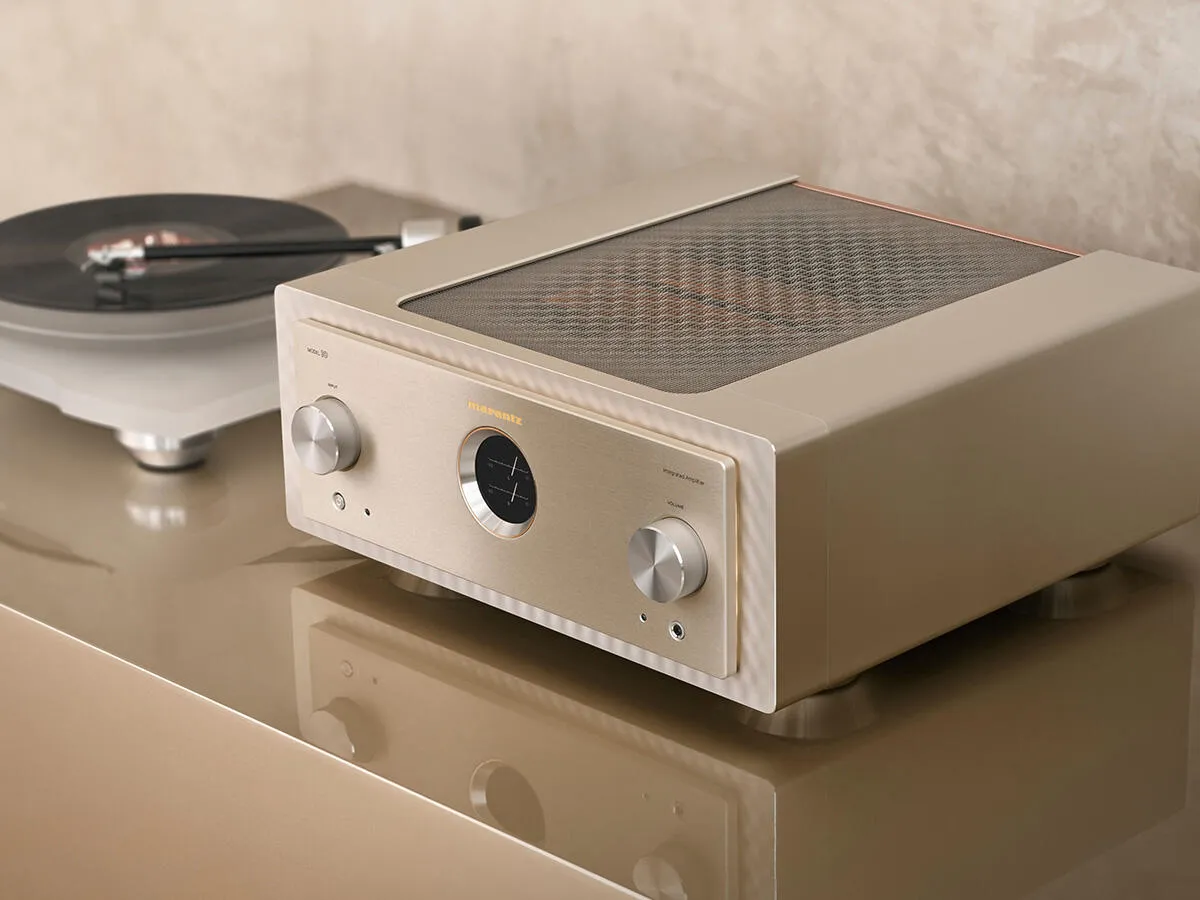

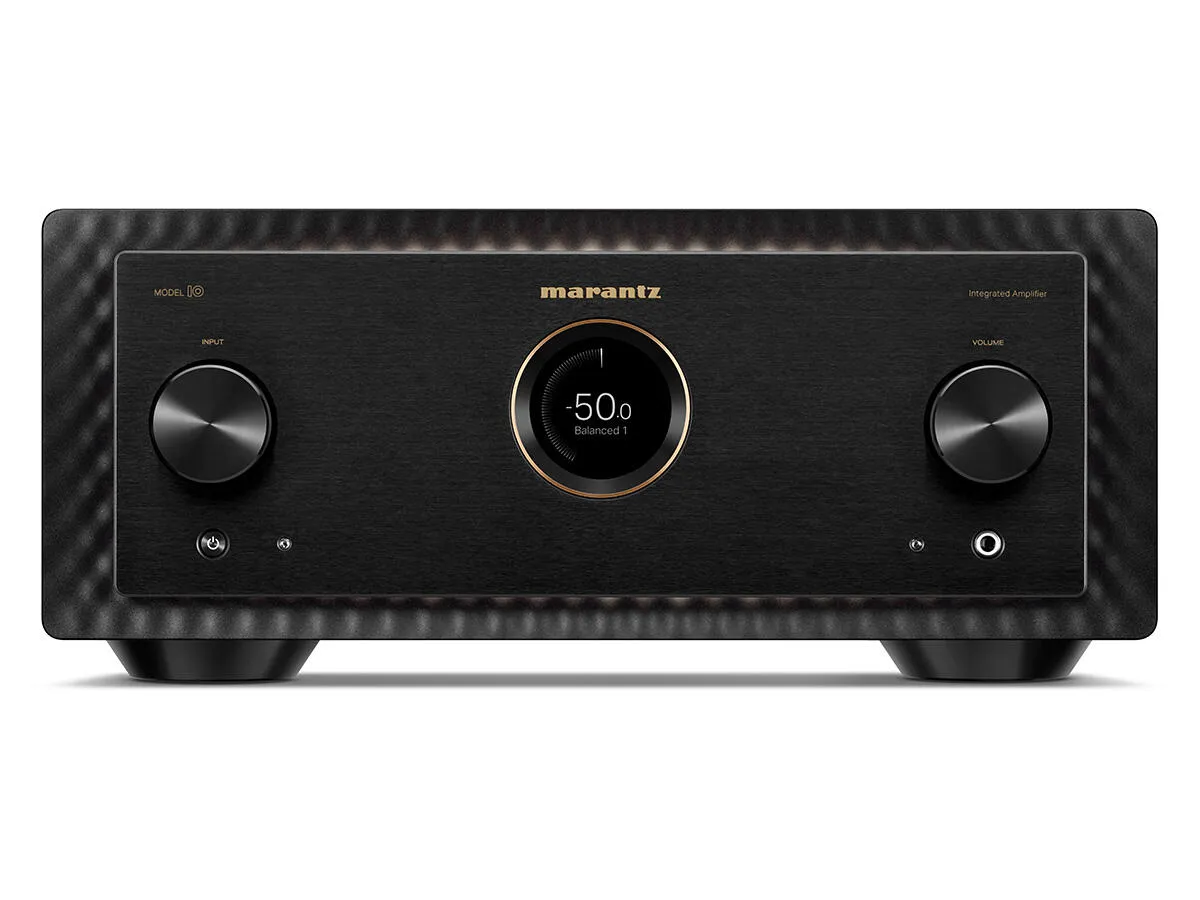

- Brushed aluminum front face, HD TFT Color Display, mesh top cover with internal illumination and branding
| Audio | |
| Rated Output Power | 250W + 250W (8ohm,20Hz-20kHz,THD 0.05 %) |
| 500W + 500W (4ohm,20Hz-20kHz,THD 0.05 %) | |
| Speaker Impedance | 4~16ohm |
| Frequency Response | 5Hz~60kHz +0dB/-3dB |
| 20Hz~20kHz +0dB/-0.3dB | |
| Total Harmonic distortion | 0.005% (125W, 8ohm, 20-20kHz) (CCIF IMD, DFD IMD) |
| Damping Factor | 500 (8ohm, 20Hz-20kHz) |
| Input Sensitivity: Phono input | MM: 3.6 mV / 39 kohm |
| MC (Low): 400 µV / 33 ohm | |
| MC (Mid): 400 µV / 100 ohm | |
| MC (High): 400 µV / 390 ohm | |
| RIAA Deviation | 20 Hz - 20 kHz ±0.5 dB (MM/MC) |
| Phono Maximum Input | MM : 80mV |
| MC : 8mV | |
| Input Sensitivity: CD/LINE/RECORDER | 350 mV/47kohm (Unbalanced) |
| 700 mV/36kohm(Balanced) | |
| (Gain = 42dB) | |
| Input Sensitivity: Power Amp input | Unbalanced: 1.58V / 47kohm (Gain : 29dB) |
| Balanced: 3.16V / 15kohm (Gain : 23dB) | |
| SN Ratio | PHONO (MM): 88dB |
| PHONO (MC): 76dB | |
| LINE1, LINE 2, RECORDER: 122dB | |
| Balanced: 122dB | |
| Headphone Output Level | 130mW / 32 ohms |
| Tone Control | BASS : 50Hz ±10dB |
| TREBLE : 15kHz ±10dB | |
| Power Consumption | 270W |
| 0.1W (at Standby) | |
| Audio Feature | |
| Power Amplifier Circuit | Switch Mode BTL |
| Power Trans | Toroidal transformer in shielding case for preamplifier section only |
| SMPS for Power amplifier | L/R independant |
| Pre Amplifier Circuit | New HDAM High Grade |
| Full balance | |
| Volume | Electric / Variable gain |
| Bass / Treble / Mid / Balance Control | Yes / Yes / No / Yes |
| Type of Tone Control | Electric |
| Headphone Circuit | HDAM-SA2+ Diamond buffer |
| Source Direct | Yes |
| Power amp mode turn off Pre-Amp power supply | Yes |
| Mono mode | Yes Switch Stereo / Bi-Amp on Rear Panel |

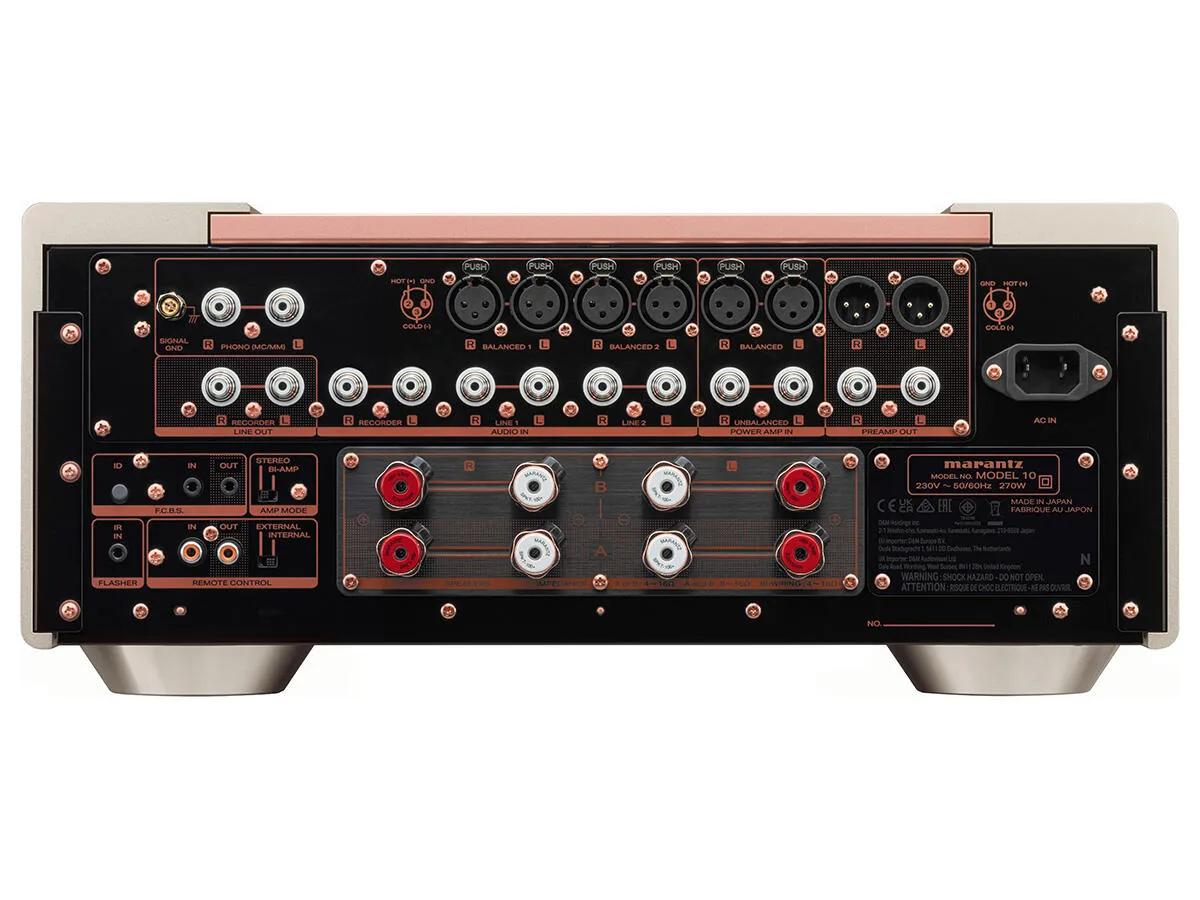

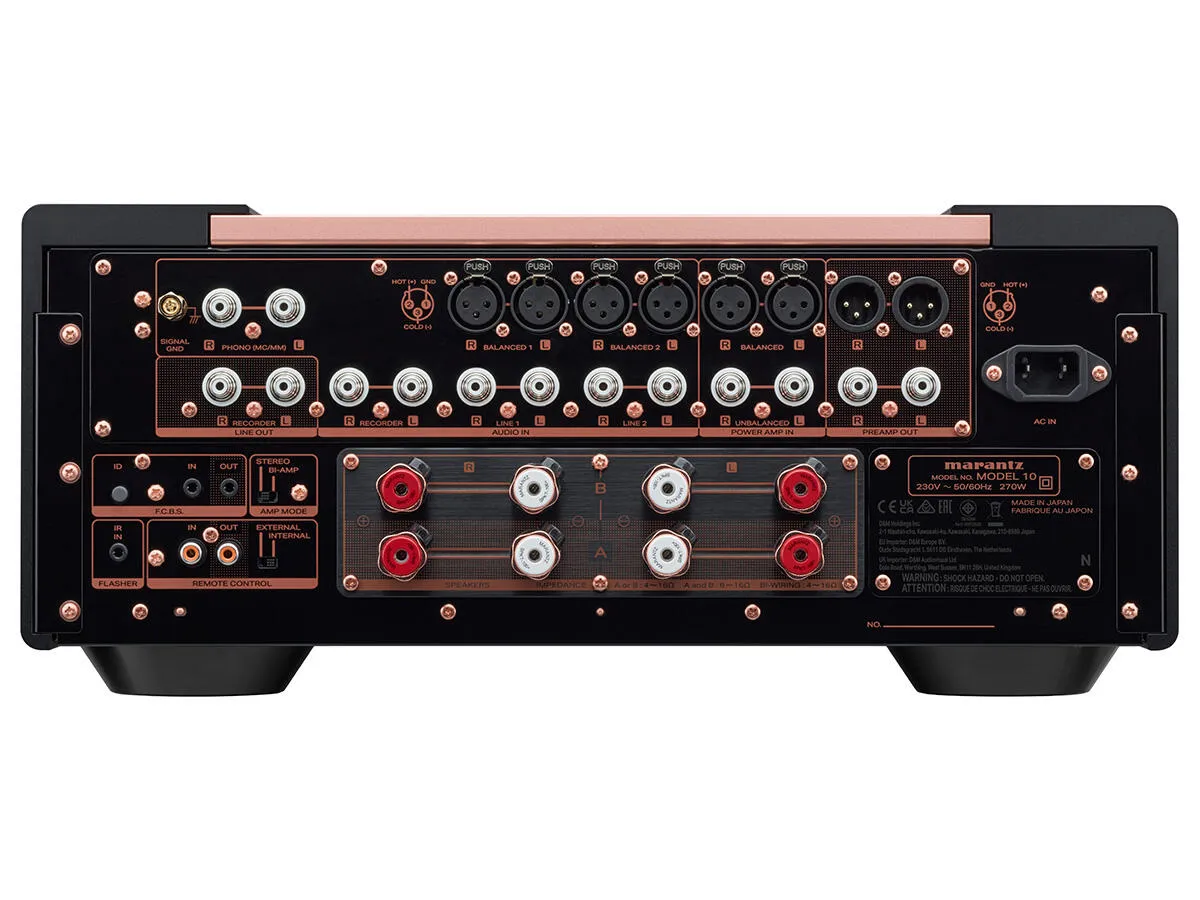

| Connectivity | |
| Audio/ Video | |
| Phono Input | Yes (MM / MC) |
| Marantz Musical Premium Phono EQ | |
| w/ Selectable MC impedance (3 position) | |
| PHONO (MC Low): 400 μV / 33Ω | |
| PHONO (MC Mid): 400 μV / 100Ω | |
| PHONO (MC High): 400 μV / 390Ω | |
| PHONO (MM): 3.6 mV / 39kΩ | |
| Analog Input (include Phono) / REC Out (RCA) | 4 / 1 (LINE1, LINE2, PHONO: Thick nickel plated independent terminals) |
| (RECORDER: Thick nickel plated independent terminals) | |
| Balanced XLR input | 2 |
| Power Amp Direct | Yes [RCA (Thick nickel plated independent terminals) / XLR] |
| Pre out | Yes [RCA (Thick nickel plated independent terminals) / XLR] |
| 2 sets of Speaker Output | Yes (Bi-wiring) |
| Speaker Terminal | Marantz Original SPKT-100+ |
| 2 (High quality and high-purity copper plated) | |
| Headphone Output | 1 (Turns off the speaker automatically when headphone is inserted) |
| Control/ Other | |
| Remote Control Bus Terminal | Yes (RC-5 In / Out) |
| Remote Internal / External Switch | Yes |
| Flasher Input | Yes |
| AC Inlet | Yes |
| Other | F.C.B.S (Floating Control Bus System) |
| Remote Controller | 10 series Universal Remote control |
| Unit control (Button) | Tact Switch : 1 |
| POWER | |
| Unit control (Knob) | 2 |
| VOLUME, INPUT SELECTOR | |
| LED | POWER: 1 White |
| Protection: 1 Orange | |
| Illumination (Edge): White | |
| Interior: White | |
| Front Panel Display | New HD TFT Color Display |
| Dimmer for Front Display | 20 steps |
| Level meter | Yes (HD Display) |
| Volume Display | -infinity/-99.5dB - 0dB / 0.5 step (default) |
| 0-100 / 0.5 step | |
| switchable | |
| Last Function Memory | Yes |
| Auto Standby Mode | Yes |
| Remote Controller | RC004PMND |
| Battery | Yes (AAA ×2) |
| Power Cord | Yes (ALL region / Audio Grade / OFC) |
| Other | CoA card |
| General | |
| Unit (W × H × D mm) | 440 × 192 × 473 |
| Cabinet Size | 440 × 192 × 422 |
| Net weight | 33.7kg |
| Packaging Dimensions (W × H × D mm) | 600 × 379 × 540 |
| Packaging gross weight | 39.0kg |
| Carton Color | 1 Color (Material color: Brown Printing: Black) |
| Panel Color | Black / Marantz Champagne |
| Front (Center) Panel | Anodized machined aluminum |
| Back-shell | Anodized machined aluminum |
| Front panel illumination | Yes (All sides, Dimmer) |
| Side cover | Aluminum (Thickness: Max 15.8mm) |
| Top cover | Aluminum (Thickness: 6mm) |
| Top cover (Centor) ventilation hole material | Stainless mesh |
| Interior ilumination | Yes, dimmable |
| Rear Panel | Copper Plated |
| Chassis Material | Copper Plated |
| Bottom Layer / Bottom plate | Triple layer Copper plated |
| Volume Knob | Solid aluminum (Bearing construction) |
| Input Selector | Solid aluminum (Bearing construction) |
| Foot | Solid Alminum with Copper |
| Heatsink for Power Amplifier | Extruded Aluminum |
