CD400 Evolution

The CD400 EVO player is equipped with the latest Top Loading mechanics developed by ATOLL. It has perfectly matched high-performance power supplies and audio stages, offering an immersive stereo image and striking sound realism.
Thanks to its digital inputs using the internal conversion stages, this player is also a high-end converter.

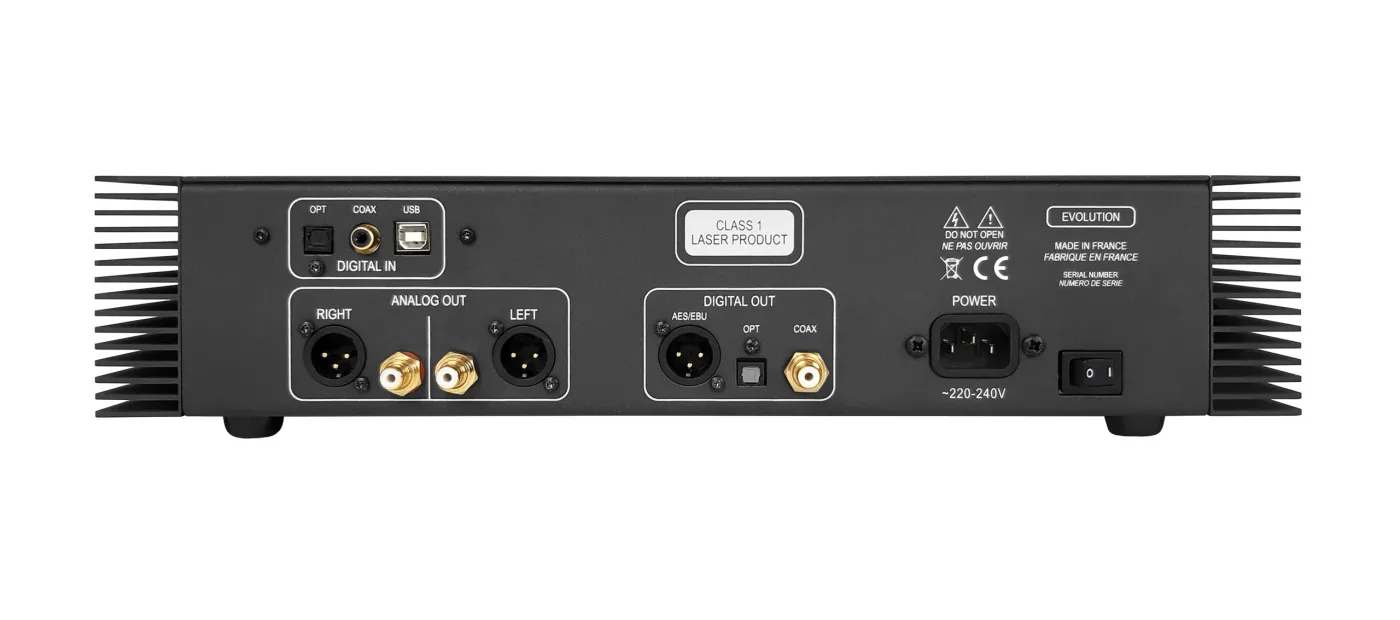

CONNECTIVITY

Inputs

1 Optical input.
1 Coaxial input.
1 USB input.

Outputs

1 Stereo XLR output.
1 Stereo RCA output.
1 AES/EBU output.
1 Digital optical output.
1 Digital coaxial output.

• 10 mm brushed, micro-blasted and anodized aluminium front panel, high-precision engraving.
• 2 mm steel chassis.
• Solid aluminium sides.
• New top-loading mechanics developed by ATOLL, suspension mounting, solid aluminum platter.
• Two 10 VA toroidal transformers each for the audio stages.
• 30 VA linear transformer (general power supply).
• 1.6 VA linear transformer (control logic).
• Ten regulated and independent power supplies.
• High-quality MKP link capacitors.
• Anti-vibration system.
• Complete dual mono structure:

                       – Two independent symmetrical stages for each channel.
                       – One PCM1792A converter per channel.

• Bipolar transistor audio stages have a perfectly symmetrical structure, are polarized in class A, and are without feedback.
• Transistor and LED current sources ensure perfect stability and drastic rejection of distortions.
• Converter inputs: coaxial, optical and USB.
• High-contrast OLED display (on or off mode after 5 seconds of inactivity).
• CD text display.

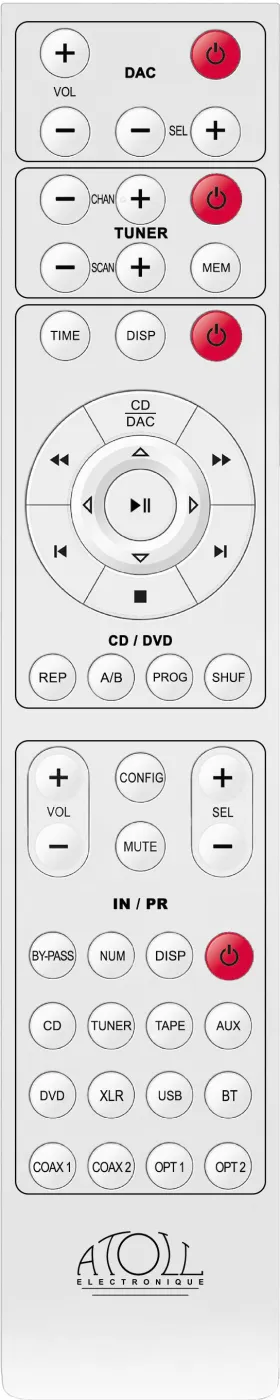

• ATOLL global remote control supplied as standard.

DIGITAL INPUTS

• 1 Coaxial input (S/PDIF – 24 bits/192 kHz).
• 1 Optical input (S/PDIF – 24 bits/192 kHz).
• 1 Asynchronous USB-B input: PCM stream from 16 to 32 bits up to 192 kHz asynchronously (USB interface: XMOS with a program specifically developed for ATOLL).
