The ultimate Personal Audio companion packaged in exquisite industrial design with the sophistication of a premium, fully balanced Headphone Amplifier. The ESS Sabre ES9028PRO DAC renders music via PC-USB input (32-bit/384kHz), Coaxial/Optical (24-bit/192kHz), aptX™ HD Wireless Bluetooth and legacy audio equipment via an AUX RCA input.
The DX-3 is ideal for audiophiles seeking to enjoy music with a perfect blend of high performance and stylish design.
The Rotel DX-3 is the ultimate audio companion combining the sophistication of an ESS Sabre DAC with an integrated Headphone Amplifier packaged in an elegant, size-efficient chassis. Audio is rendered with precision and performance supporting an array of both modern and legacy source inputs including PC-USB (32-bit / 384kHz) with DSD 4X support, Coaxial and Optical (24-bit / 192kHz), wireless aptXTM HD Bluetooth and an RCA analog connection.
At its core the DX-3 is driven by an ESS Sabre ES9028PRO 8-channel DAC ensuring exceptional digital-to-analog conversion rendering music with ultimate resolution maximized on an immersive soundstage. The internal headphone amplifier is powered by a custom in-house manufactured, shielded toroidal transformer with high current drivers to deliver dynamics with an ultra-low distortion of < 0.004%.
Variable user selectable headphone gain levels of High, Medium and Low ensures support for low and high impedance headphones through convenient front panel 4.4mm balanced and 6.35mm single ended headphone connectors. Volume attenuation is controlled by an audiophile grade NJW1195A analog controller delivering precise steps as refined as 0.5dB.

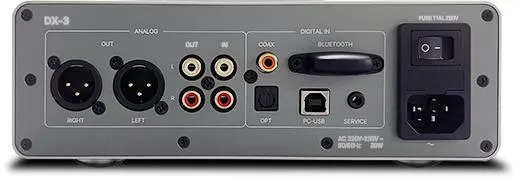

The DX-3 also functions as a standalone DAC and fully functional Preamplifier via XLR Balanced and RCA outputs. This extends the flexibility of installation to directly drive external amplifiers, powered speakers or feeding an existing audio system.
A full-color front panel display provides all user feedback and simplifies a powerful array of setup options with ease. The included aluminum extruded remote control puts the power of the DX-3 in your hands providing access to all runtime and setup functions
Whether used as a high-performance Headphone Amplifier, feature laden Preamplifier or high-performance DAC, the DX-3 redefines the personal audio space with performance, features and value exquisitely packaged; ideal for discerning audiophiles.
| HEADPHONE SECTION | |
| Power Output (THD+N < 1%) | |
| Single-ended (6.35 mm) | 765 mW (16 Ω) |
| 383 mW (32 Ω) | |
| 41 mW (300 Ω) | |
| Balanced (4.4 mm) | 2.8 W (16 Ω) |
| 1.4 W (32 Ω) | |
| 150 mW (300 Ω) | |
| Total Harmonic Distortion (32 Ω, 1k Hz) | |
| Single-ended | < 0.008% @ Output = 70 mW |
| Balanced | < 0.004% @ Output = 270 mW |
| Intermodulation Distortion (60 Hz : 7k Hz, 4:1) | |
| Single-ended | < 0.01% |
| Balanced | < 0.006% |
| Frequency Response | 20 Hz - 20k Hz, (+0 dB, -0.2 dB) |
| Output Impedance | |
| Single-ended | < 0.3 Ω |
| Balanced | < 0.6 Ω |
| Signal to Noise Ratio (IHF “A” weighted) | |
| Single-ended | > 100 dB |
| Balanced | > 110 dB |
| Gain | 0 dB @ Gain = H |
| -6 dB @ Gain = M | |
| -12 dB @ Gain = L | |
| Recommended Headphone Impedance | 16 Ω - 300 Ω |
| ANALOG SECTION | |
| Total Harmonic Distortion (20 Hz– 20k Hz) | |
| Unbalanced (RCA) | < 0.006% |
| Balanced (XLR) | < 0.003% |
| Intermodulation Distortion (60 Hz : 7k Hz, 4:1) | < 0.001% |
| Frequency Response | 20 Hz – 20k Hz (+0 dB, -0.4 dB) |
| Signal to Noise Ratio (IHF “A” weighted) | > 107 dB |
| Line Output Level / Impedance | |
| Unbalanced (RCA) | 1 Vrms / 100 Ω |
| Balanced (XLR) | 2 Vrms / 200 Ω |
| Input Sensitivity / Impedance | 1.2 V / 10k Ω |
| Input Overload | 5 V |
| Channel Separation | > 86 dB @ 10k Hz |
| DIGITAL SECTION | |
| Total Harmonic Distortion (20 Hz– 20k Hz) | |
| Unbalanced (RCA) | < 0.005% |
| Balanced (XLR) | < 0.003% |
| Line Output Level | |
| Unbalanced (RCA) | 1.6 Vrms |
| Balanced (XLR) | 3.5 Vrms |
| Frequency Response | 10 Hz – 20k Hz (+0 dB, -0.5 dB) |
| Signal to Noise Ratio (IHF “A” weighted) | > 112 dB |
| Input Sensitivity / Impedance | 0 dBFS / 75 Ω |
| Digital to Analog Converter | ESS ES9028PRO DAC (32-bit/768k Hz) |
| Digital Inputs | SPDIF LPCM (up to 24-bit / 192k Hz ) |
| PC-USB | USB Audio Class 2.0 (up to 32-bit / 384k Hz )* |
| *Driver installation required | |
| Support DSD (up to 11.2 MHz) and DoP (up to 5.6M Hz) | |
| Roon Tested | |
| GENERAL | |
| Power Requirements | 230 V, 50 Hz |
| Power Consumption | 30 W |
| Standby Power Consumption | < 0.5 W |
| BTU | 100 BTU/h |
| Dimensions (WxHxD) | 215 x 76 x 247 mm |
| Front Panel Height | 70 mm |
| Weight (net) | 3.2 kg |
