Uniti Atom

Enjoy sublime sound from all your favourite music and radio stations – even your TV – with the Uniti Atom streaming player. Award-winning performance combines with excellent build quality and usability, wrapped in a beautiful British design that will give you years of entertainment.

Uniti Atom expertly handles all the top music-streaming services – including Spotify, Apple Music, TIDAL and Qobuz – plus offers easy Apple AirPlay 2, Chromecast built-in and Bluetooth playback.

It can also seamlessly play with other music systems around your home, and connect to your TV via HDMI, so your favourite shows and movies sound better, too.

Master the Uniti Atom and explore a world of music via the Naim App; there is also voice-control support for Google Assistant and Apple Siri, and even a smart remote control handset.

The powerful Uniti Atom sounds magnificent with a wide range of loudspeakers – we suggest Focal as the perfect partner.

Easy App control – in one room or many

The Naim App – available for Apple and Android devices – makes it simple to control your Uniti Atom, and even link up other music systems around your home into a stunning multi-room set-up.
Use the App to access all your music, including your favourite radio stations, streaming services and playlists, and explore artist discographies and biographies.

Uniti Atom works seamlessly with other Naim streaming products, including Mu-so systems. Choose the same song in beat-perfect sync or play different music in different rooms. You can also pair Uniti Atom with other AirPlay 2-compatible wireless speakers via the Apple Home app, or with other Chromecast built-in devices via the Google Home app.

Naim’s Uniti Atom is an all-purpose system superseding the award-winning Uniti Qute 2, it incorporates UPnP, a concealed wifi antennae, CD playback, amplification and colour display in a single unit.

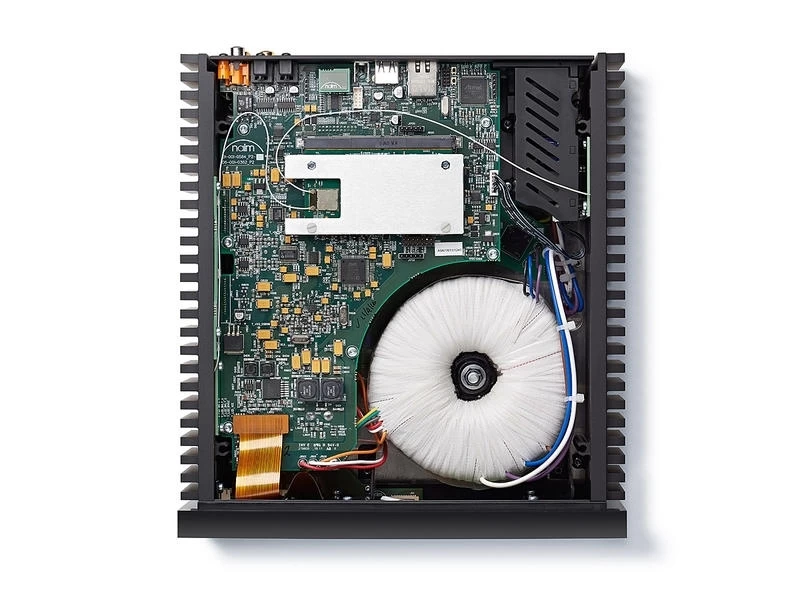

Streaming Board

Naim’s latest distinguished streaming board is a co-design presenting Naim’s architectural philosophies in an existing design to reduce development time for this 8-layer board and to assure approval of diverse key features.

Naim’s research indicates more customers even of its NDS high-end streamer are choosing to use Tidal and Spotify. Partnering allowed Naim to add its expertise in audio board layout and also to move the digital connectivity to I2S over LVDS meaning the digital signal has the benefit of a separate clock signal resulting in lower jitter.

Low voltage numerical signalling enables digital communications with sharp accuracy but ultra-low beam field. Given the varied analogue/digital nature of network players keeping beam fields at a minimum is essential.

State of Art Wi-Fi

New Uniti Atom has noticeably superior Wi-Fi capability that has greater stability and performs five times quicker than the original platform. The Wi-Fi processor supports 2.4 and 5GHz speeds making it the best in the market. Alongside this, all have a much larger internal buffer and memory resulting in far fewer dropouts compared to the old platform that could only store up to a minute’s worth at CD data rates. The Uniti structures have a proprietary hidden and integrated Wi-Fi aerial behind a slot in the heatsink sandwiched between the fins.

A/B Class Amplification

Uniti has Class AB amplification, with expertise derived from the classic NAIT integrated amps. A/B is pricey to implement and has many procedural limits to overcome particularly in highly crammed cases but in spite of these trials, it was selected to offer top audio performance. Uniti Atom uses a mix of hole film capacitor and SMD.

Power Supply

Large transformers have been added to the power amp sections and flow from linear power supplies. The power supply for these sections is also enlarged to the biggest linear size that fits. When in standby a relay switches over to small SMPS to bring power consumption within regulations. Once powered on, this SMPS is totally out of circuit mechanically and electronically.

DSP & DAC

The new Atom features an incredibly powerful new 4th Generation 40-bit SHARC DSP processor, the ADSP 21489 capable of 2700 MFLOPS running at 450Mhz.

The SHARC processor features Naim’s RAM buffer (introduced in the DAC/NDS and called 0 S/PDIF) then 16 x oversampling and digital filtering with Naim written software in the DSP. This bypasses the digital filter part in the Burr Brown DACS for consequential sound quality improvements.

All three new Uniti players use high-end Burr Brown DACs and analogue filter sections and output stages constructed from similar high-end components to those in their respective preamplifier sections. Using an extremely powerful SHARC also allows for future updates both in performance, formats and features.

Volume Control

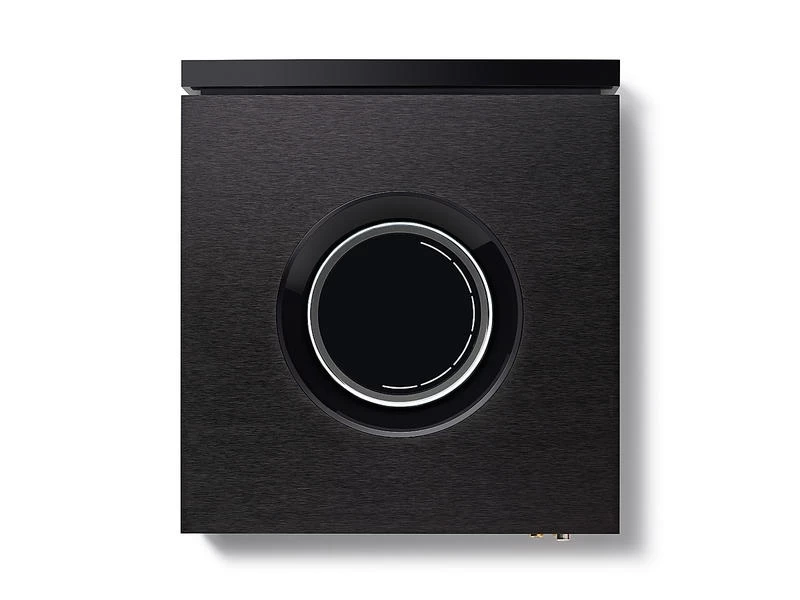

The heart of any good preamplifier is the volume control. Uniti Atom has a digitally controlled analogue volume control. It provides an interface directly with the buttery smooth and beautifully illuminated top surface volume control, first conceived for Statement. The illuminated volume segments are reflected in the same fashion on the remote control and will adjust accordingly on the top surface ring if the volume is changed remotely.

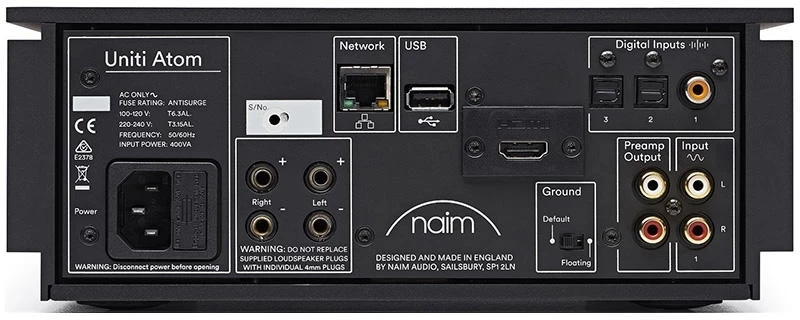

HDMI Audio Return

HDMI is the 21st Century’s SCART lead, it carries video, audio and control signals but where SCART was analogue, HDMI uses digital technology. HDMI ARC carries the digital audio signal. Plug a HDMI cable from the TV’s HDMI ARC connector to the Uniti and whichever input on the TV is selected the TV sound will be sent digitally to the Uniti and Uniti will decode (PCM Stereo only) and play it.

The HDMI cable will also send TV remote control volume commands: the TV remote will control the Uniti’s volume control making the process easy for the whole family to use. It can also control the inputs of Uniti, for example: turn on the TV and Uniti will turn on and select the HDMI ARC input automatically.

The HDMI inputs on Uniti Atom is galvanically isolated to ensure that noise from the TV power supply or indeed any other devices connected to the TV do not affect the Uniti’s performance when playing any source.

Control App

New Uniti all-in-one players can be controlled via the supplied remote control, or via the Naim Control app for iPad, iPhone, iPod and Android. The Control app puts a world of music at your fingertips. If you have other Naim streaming products on the same network, you can select rooms and enable party mode directly from the app.

The new range improves dramatically over the original Uniti range concerning updates. The new Uniti all-in-one players feature wireless updates that are controlled via the Naim app. The app will notify the user when an update is available, the user can accept, at which point the update will commence seamlessly

RF Remote Control

All aspects of Uniti’s design were considered holistically, including the design of a new bi-directional remote control. Very early on R&D realised that passive IR remote technology was not going to deliver the targeted intimacy. So, a ground-up solution, both from a technological and a user point of view was sought and found with the bi-directional remote control. Beautiful white backlit buttons, around volume display with segments that light up in harmony with the volume knob on the player and easy pairing to any Uniti player, the remote is an intrinsic part of new Uniti.

Materials & Fabrication

The material choices and the construction solution were crucial for new Uniti and are in complete service to the thermal and electrical requirements placed upon the internal componentry; in order for electronic components to perform at their very best, Naim approach the design of our mechanical enclosures in a very unique way.
Naim’s four engineering fundamentals of circuitry, space, purposeful materiality and technology played a huge part: each component of the Uniti system case has been rolled or extruded and then machined with computer controlled, liquid cooled numerically controlled cutting equipment (CNC) for absolute dimensional precision.

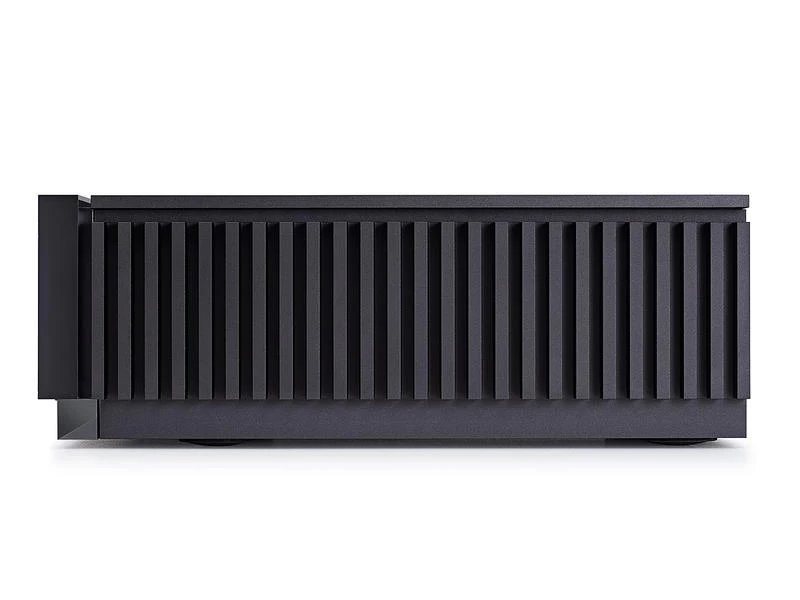

The substantial side heat sinks present in all Uniti products are directly coupled to the individual product floor pans to provide excellent thermal contact and heat transfer. This ensures that heat is removed from the circuitry quickly and efficiently, especially when the amplifier is operating under heavy loads. Thermal stability ensures consistent performance and long component life, two key parameters to Naim design.

CNC Fabricated

The 15mm top plate covers present on all products are CNC fabricated, brushed and cosmetically anodised to offer a beautiful muscular appearance as well as tough scratch and dent resistant cladding suitable for the many years ahead. An amalgamation of beautiful design and delicate engineering, the precision CNC machined volume knob sub assembly delivers absolute volume control and is a joy to use. The thick aluminium wall sections absorb unwanted vibrations and help protect the core internal electronics from detrimental magnetic influences. Even the mounting of the printed circuit boards to the chassis is controlled to limit the effects of microphony upon the components.

Design

Over the last forty years Naim has been honing a minimalist purity in the design language of its electronics. Recently they have explored the limits of this language in the statement amplifier which truly represents the pinnacle of Naim design and engineering. So the intention has always been to draw on the precision and purity of their wonderful black boxes and to never lose sight of their function and purpose whilst at the same time looking to stretch the visual identity so that they discover and express purity of form, as well as performance in the product language. The aim with the new Uniti all-in-one players has been to raise the bar of every single feature and design aspect.

New Look Design

All functional elements are as embedded into the core design DNA of Uniti as much as possible. The CD slot feature is presented as a bold split line, the display is presented as a whole cheek, the heatsinks are captured within the overall footprint and the logo bar embedded into the base.
The combination is a visually clean, beautifully finished enclosure built to the highest levels of precision. The end result is the perfect amalgamation of where we as a company have come from and where we are going. Hand build products designed and manufactured in Salisbury to provide many years of musical satisfaction whilst being completely in tune with the demands of the modern music lover.

Hidden Antennae

New Uniti Atom uses antennae to connect to various sources. Naim engineered a system of housing flat aerials into a specially machined slot in the heatsinks at the side of the machine. What seems like a simple process is actually tremendously complicated as the mechanical dimensions of the slot have to work together to fine tune the Wi-Fi frequencies. There is also an additional Bluetooth antenna underneath the central dial. The end result of both of these features is a seamless aesthetic that doesn’t lose any of the connectivity that we strove for at the beginning of the process.

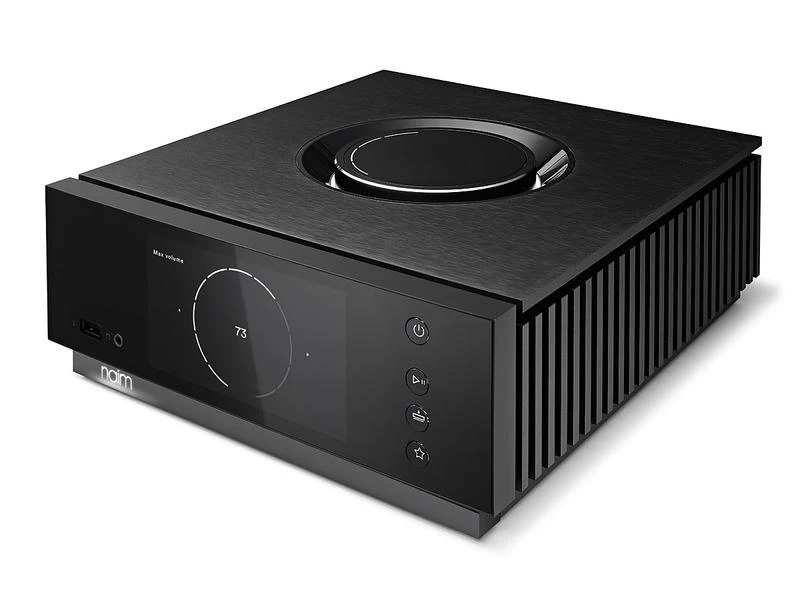

Full Colour Displays

With this range Naim wanted to deliver total connection to the user’s music collection. A very high grade full colour display provides rich imagery of album artwork and content. The screens have proximity sensors and thus will wake up as someone approaches the machine to display music data, audio input information and more. There is also a selection of front panel convenience buttons, including Favourites, Stop and Play.

Music Storage Options

Uniti’s internal databases allow easy transfer of your music library to your preferred storage devices. Uniti Atom incorporates an option to plug in a USB CD-ROM drive and rip to an HDD in the other USB socket. The database has a limit of 20,000 tracks.
