• 12 inch (30 cm) chassis consisting of a hardened and specially coated dual cone
• Class-D amplifier with 525/1100 watts of continuous/peak power
• DSP for extensive adaptation to existing speakers and a room´s acoustics
• Solid MDF housing in a black high-gloss finish

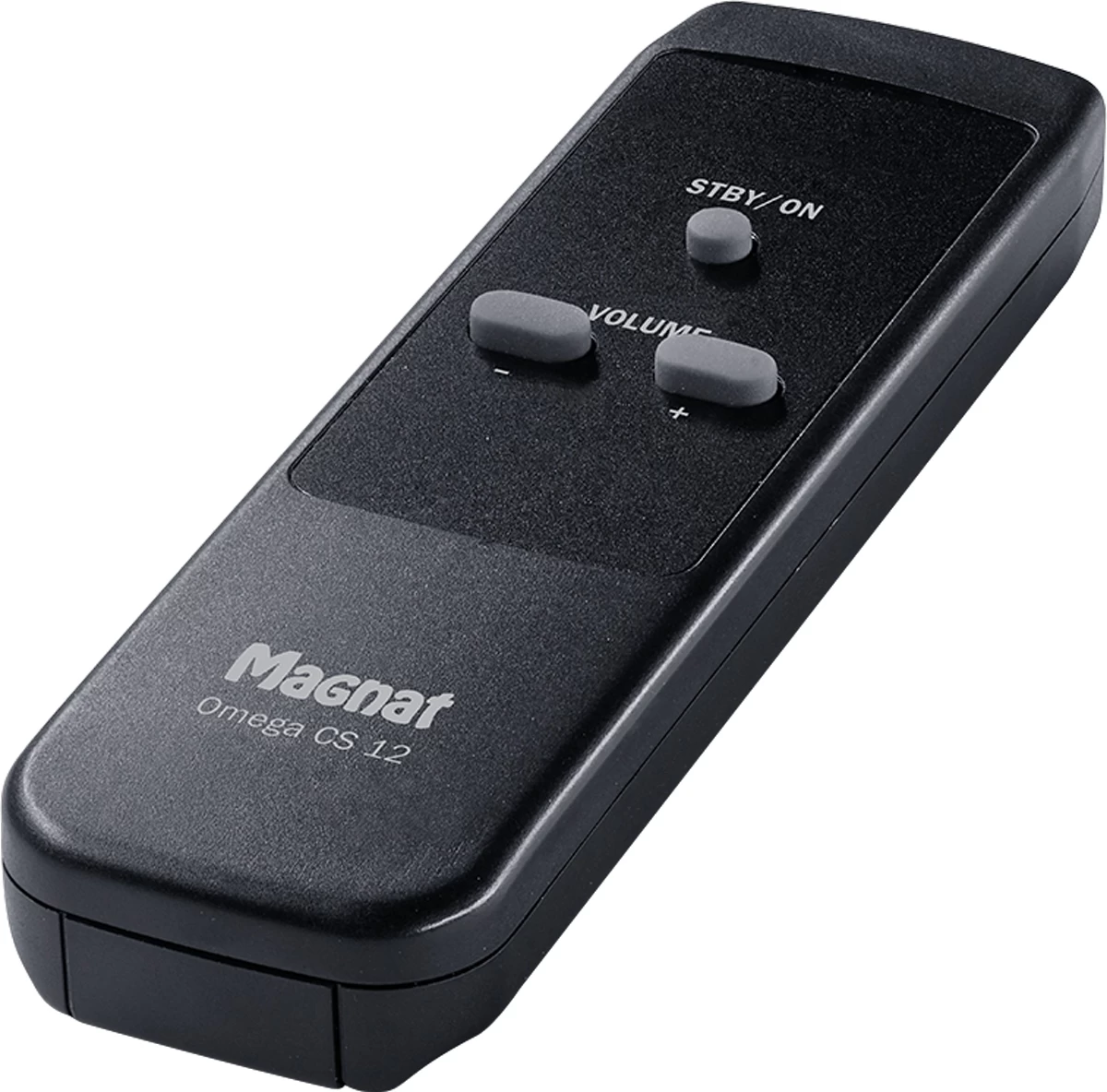

• Remote control for level adjustment

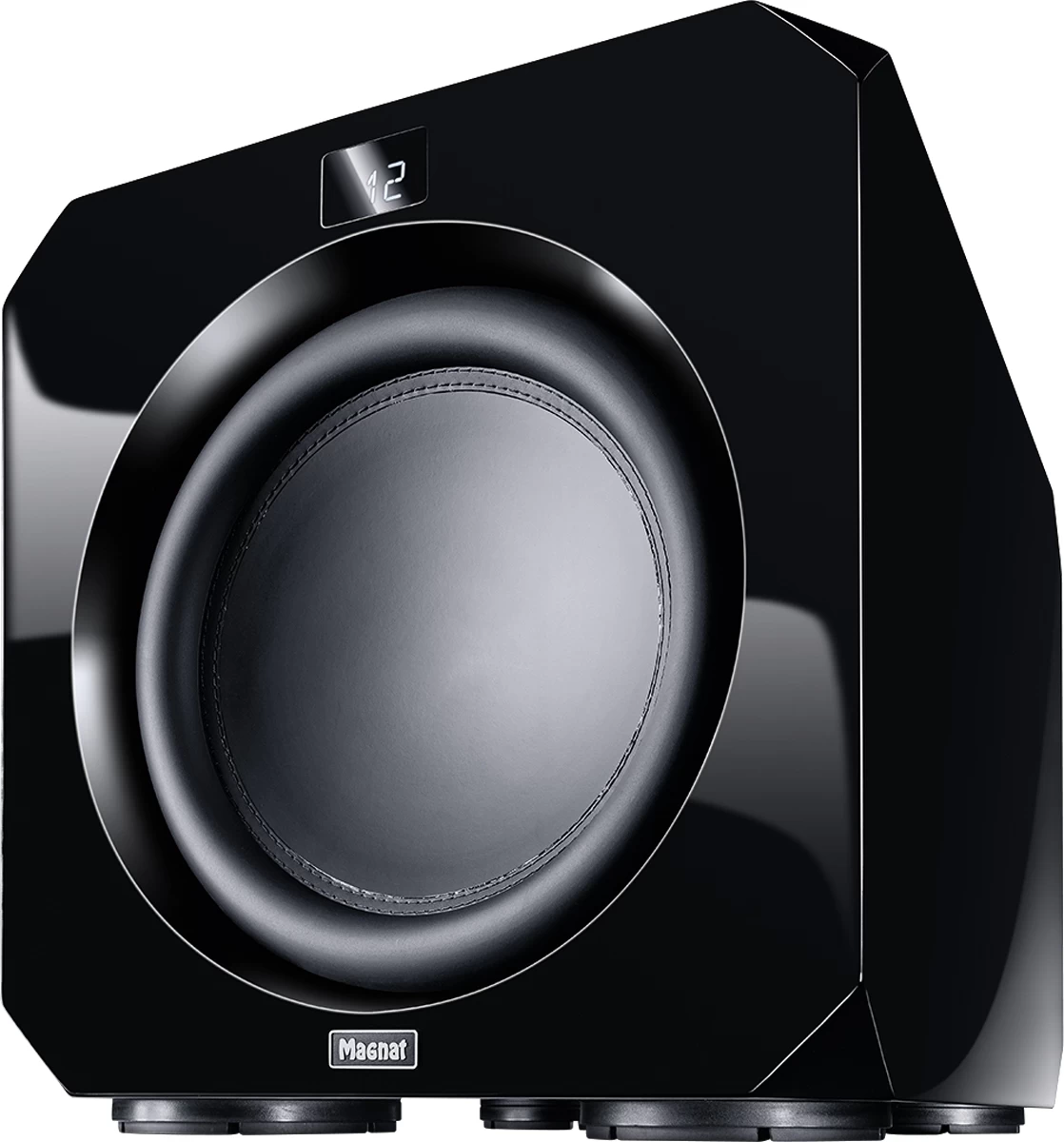

Active subwoofer with a 12 inch cone and a 525/1100 watt amplifier

Thanks to a cone construction that has been specifically developed for the deep bass range and an extremely powerful amplifier, the Magnat Omega CS 12 active subwoofer is the perfect addition to any hi-fi or home cinema system.

EVERYTHING FOR THE BASS

The specially hardened and coated material has been constructed in a dual cone configuration measuring an impressive 30 cm in diameter. The drive is provided by a 70 mm high-performance coil and a 170 mm ferrite magnet. Together with the bonded and additionally stitched longthrow surround, the overall result is a sub that has been optimized using Klippel laser technology and can optimally reproduce frequencies between 18 and 200 Hz.

UP TO 1100 WATTS OF BRUTE POWER

The integrated Class-D power amplifier delivers a brutal 525 watts in continuous operation and up to 1100 watts of peak power. The high-speed DSP also linearizes the frequency response and enables continuous adjustment of the crossover frequency, the phase and the adjustable bass extension at 35 Hz. This means all of the prerequisites are in place for harmonious integration of the Omega CS 12 into a hi-fi or home cinema system.

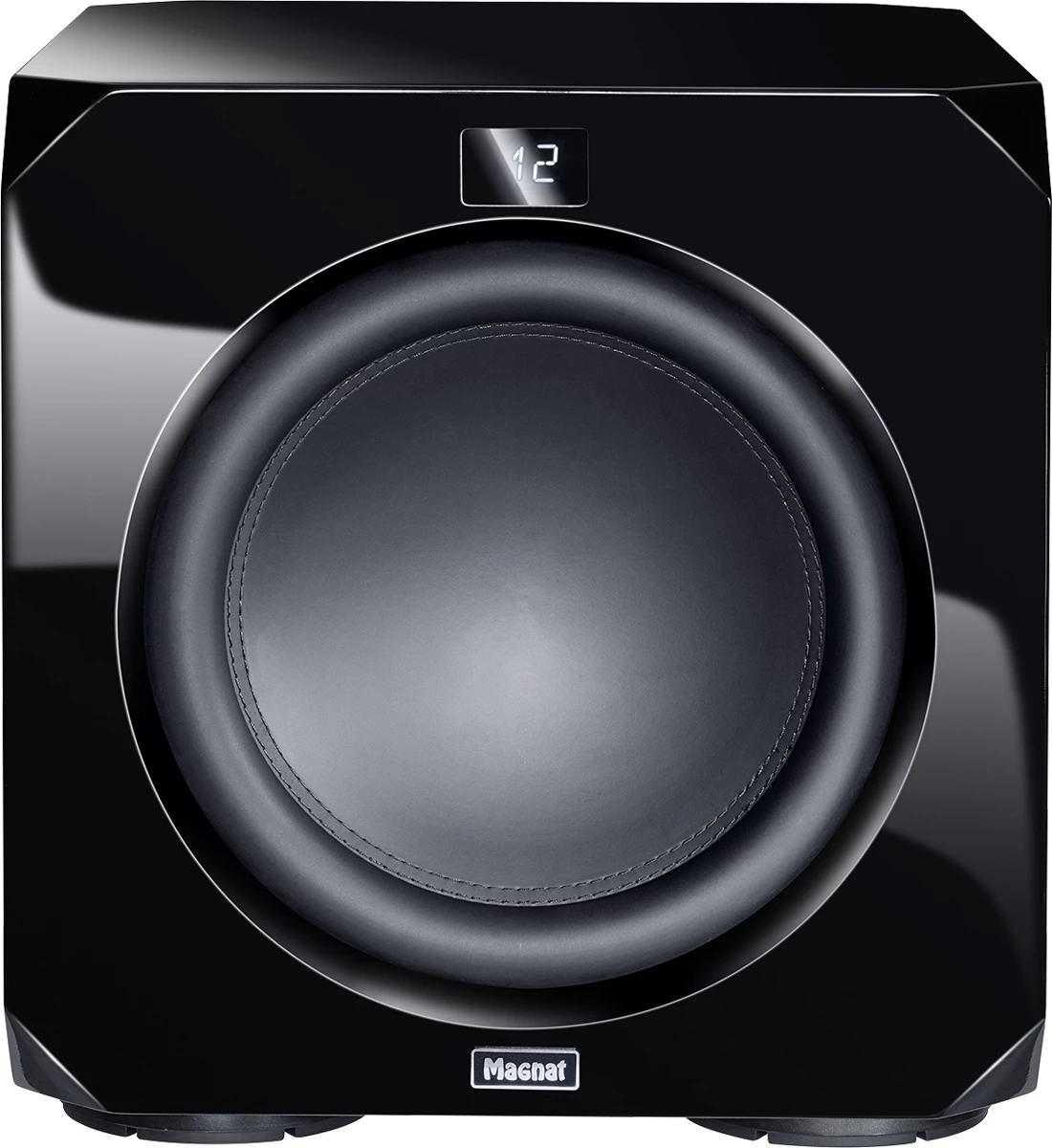

TIMELESS, COMPACT, SOLID

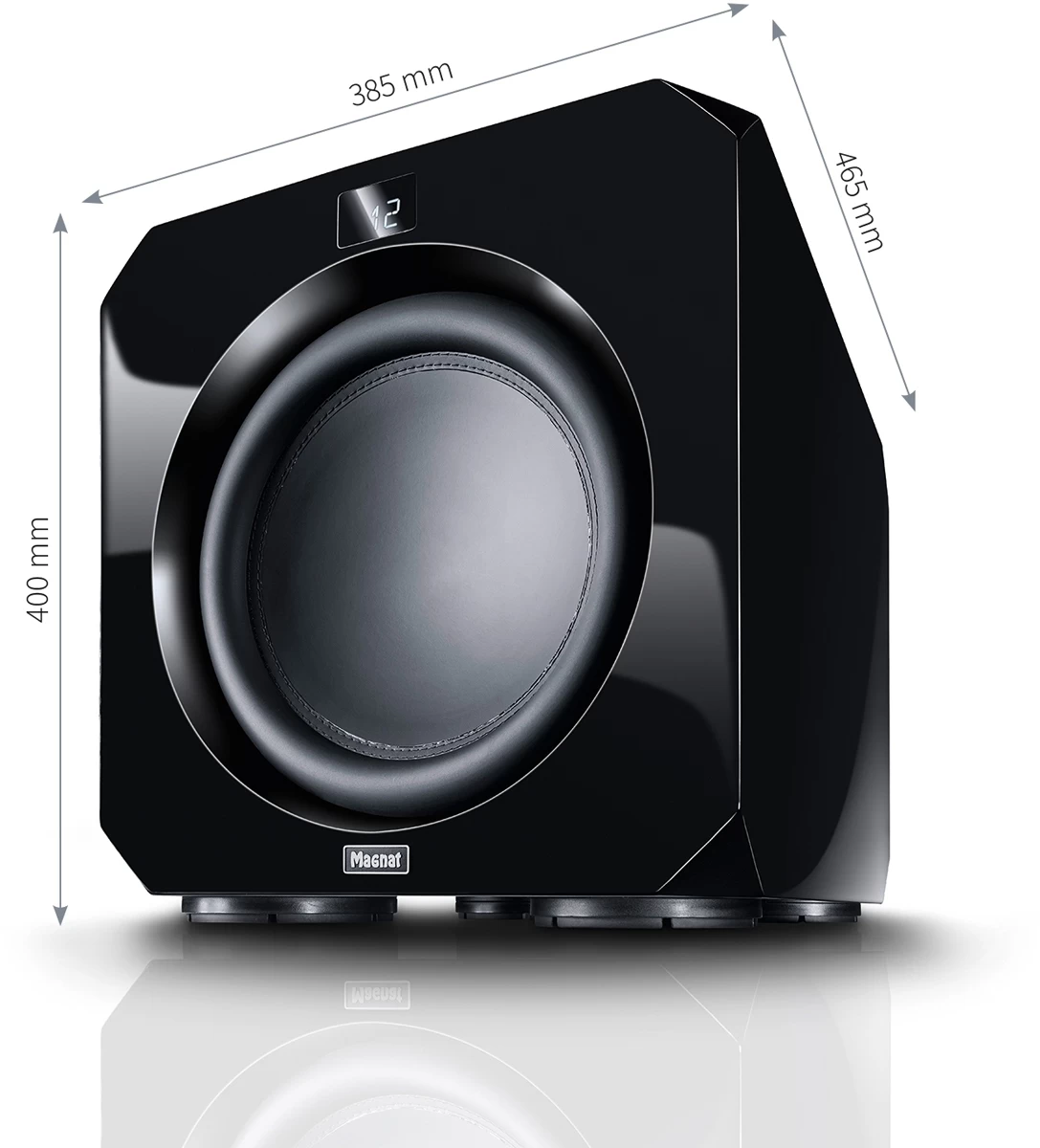

It couldn´t be much more compact: The developers have constructed an ultra-solid MDF housing that is hardly any larger than the 12 inch chassis. The enclosed construction radiates sound towards the front of the unit and thus minimizes room interference. In its high-gloss black finish, the Omega CS 12 is discreet yet elegant at the same time, immaterial whether it´s located in a prominent position or set up discreetly in the background.

Regardless of whether you have audiophile shelf speakers, floorstanding speakers or a home cinema solution - one or more active subwoofers such as the CS 12 are always a welcome addition. They relieve existing speakers of their duties in the deep bass range and inspire them to achieve acoustic feats.

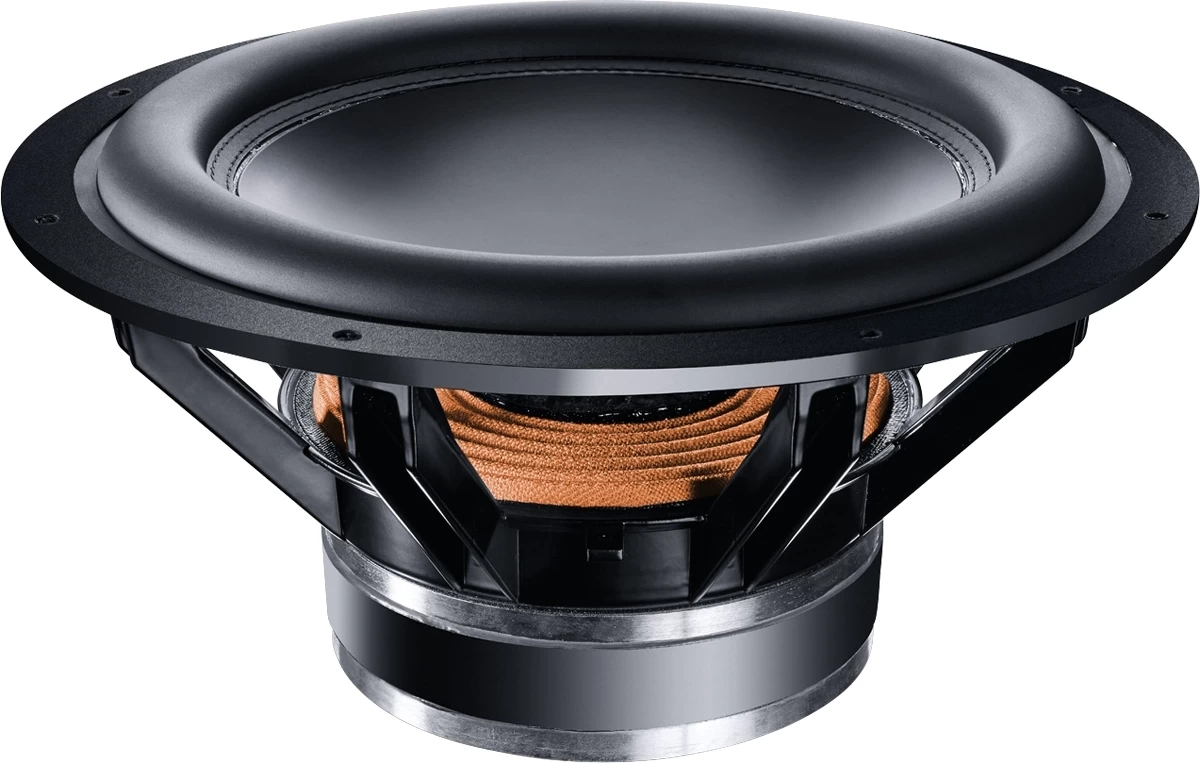

WOOFER:

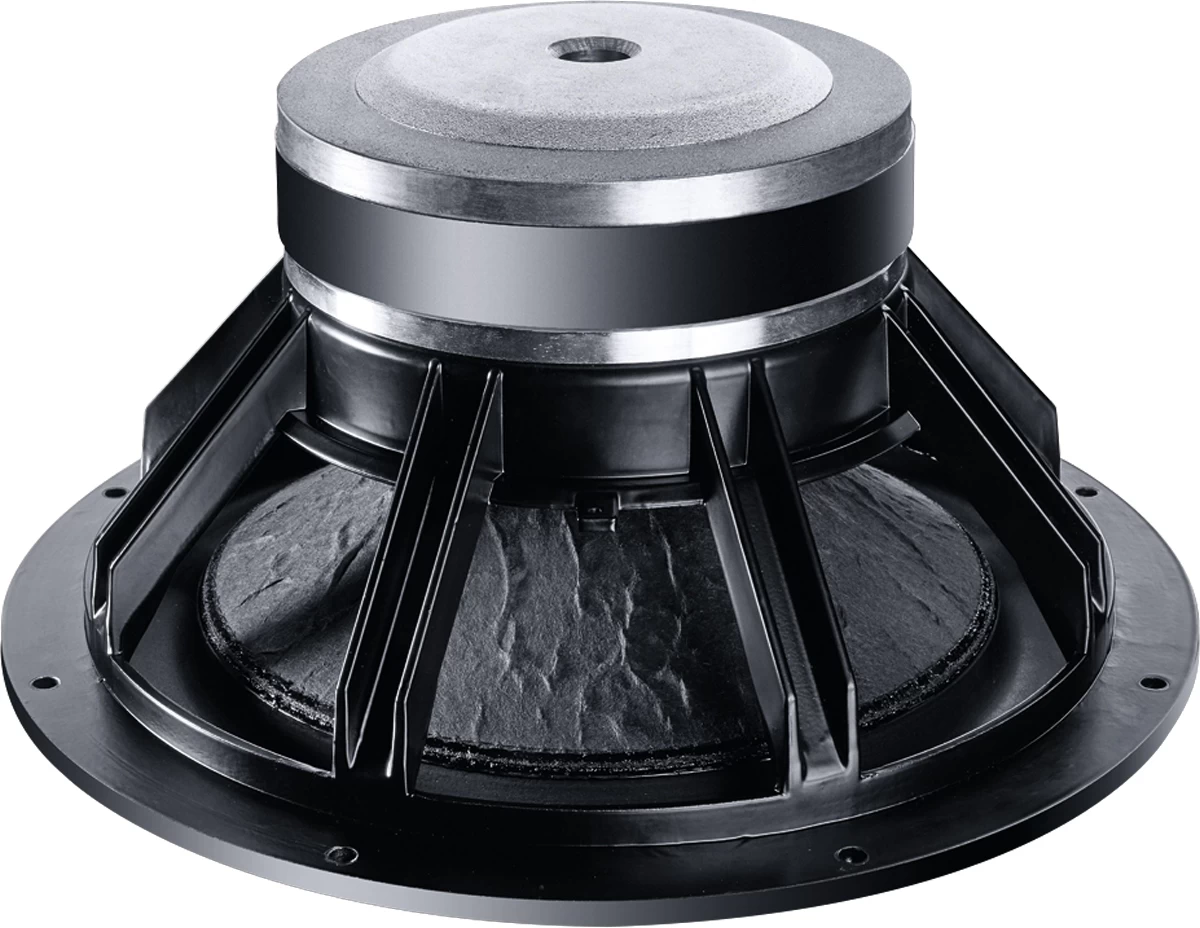

• 300 mm high-power long-throw woofer with Klippel®-optimized magnet system
• Magnet system with 170 mm high-performance ferrite ring
• Special cone construction that has been optimized for the subsonic frequency range and consists of a hardened and specially
• coated dual cone, which is bonded with an extra-wide long-throw surround and double stitched seams
• A ventilated 75 mm high-performance voice coil with aluminum voice coil support guarantees maximum operational reliability
• Extremely sturdy speaker basket made of die-cast aluminum

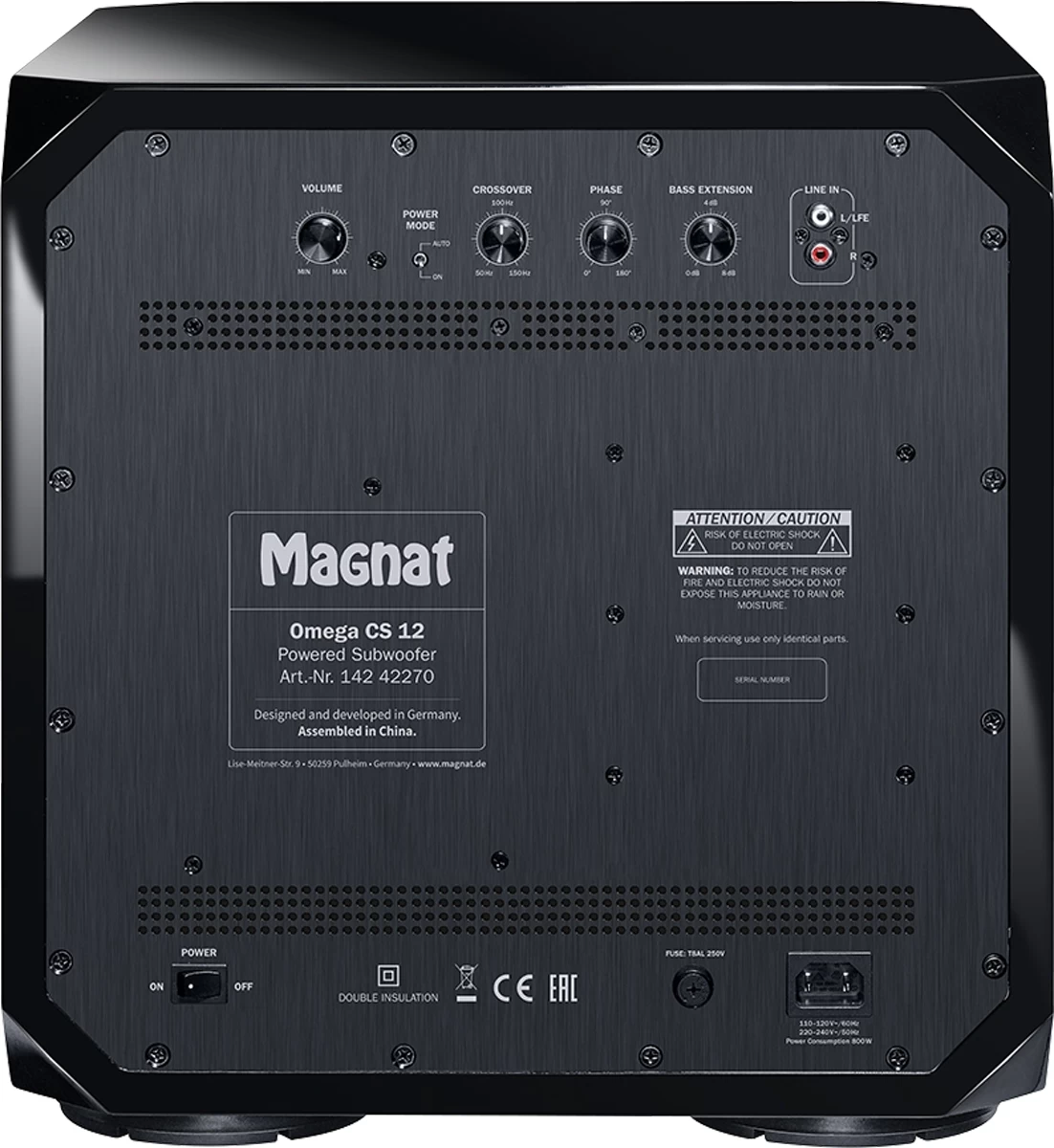

AMPLIFIER:

• High performance class-D amplifier
• DSP-controlled filter and limiter unit
• Adjustable volume
• Volume and Power ON/STBY mode can also be controlled via remote control
• Crossover frequency can be adjusted between 50 and 150 Hz
• Phase can be adjusted between 0° and 180°
• Adjustable bass extension between 0dB and +6dB at 35 Hz center frequency
• Active frequency response equalization up to 150 Hz for easy integration into AV environments

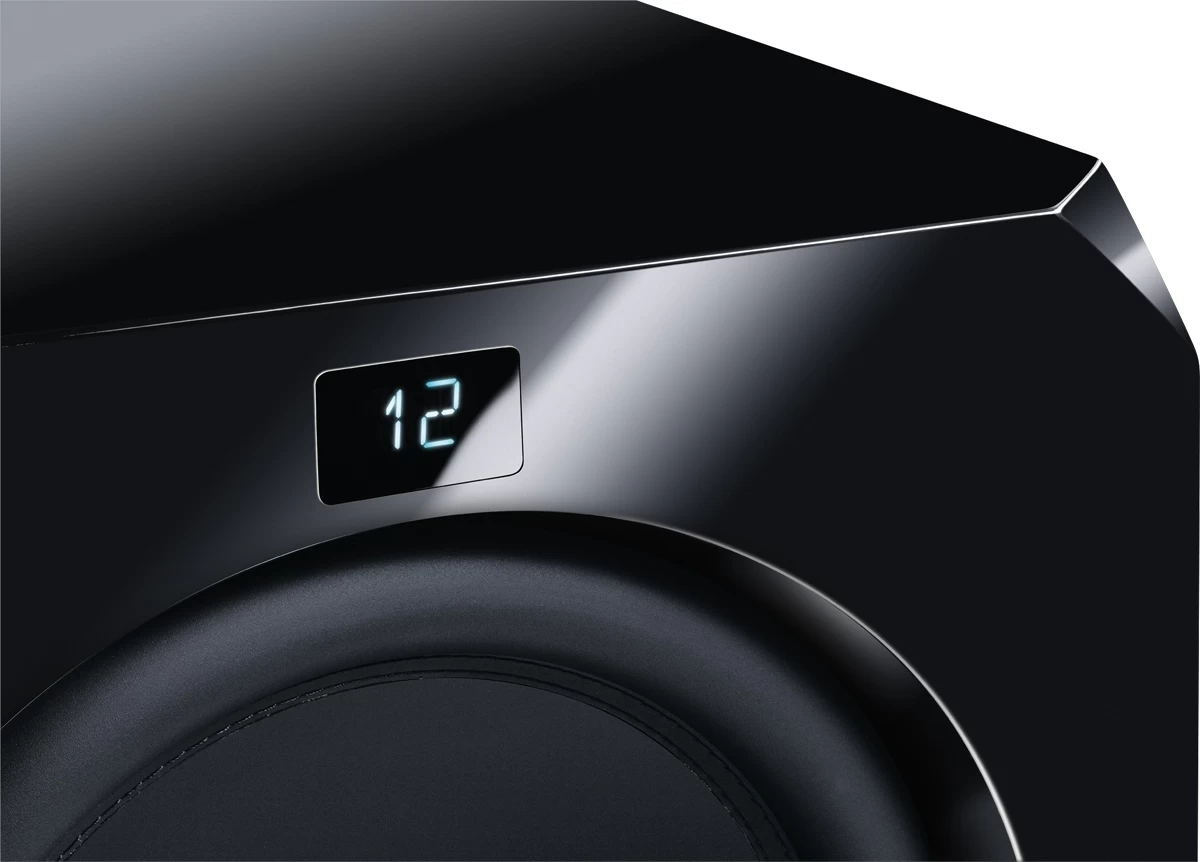

• A large two-digit display indicates the current volume
• Automatic standby function with a low power consumption of
• Mains voltage: 100-240 V
• Power switch

CABINET:

• Very sturdy, low-resonance MDF housing
• Elegant high-gloss black finish
• Bass speaker in a ‚front-firing‘ configuration
• Enclosed housing construction for a deep and precise bass response

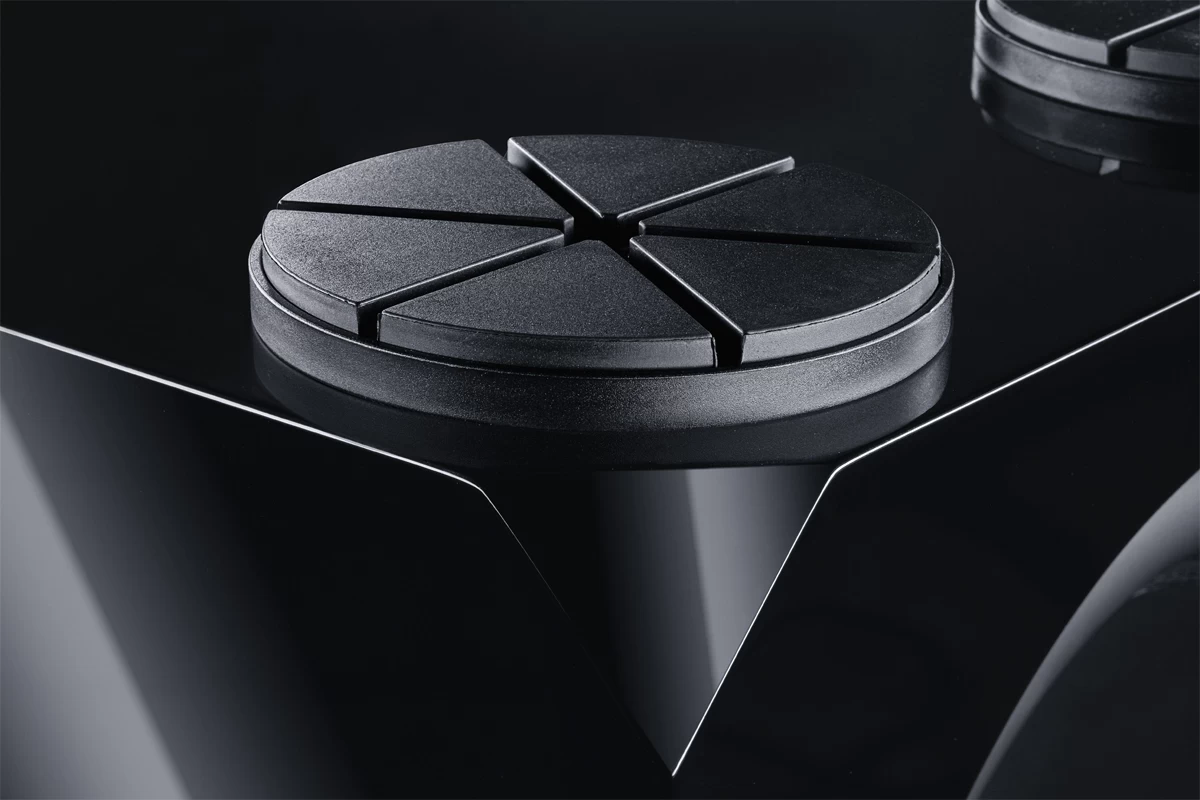

• Large „Extended Surface Dampers“ (ESDs) for enhanced stability

FEATURES:

• Stereo low level inputs (RCA connections)
• Mains connection
