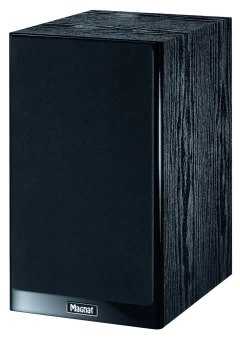

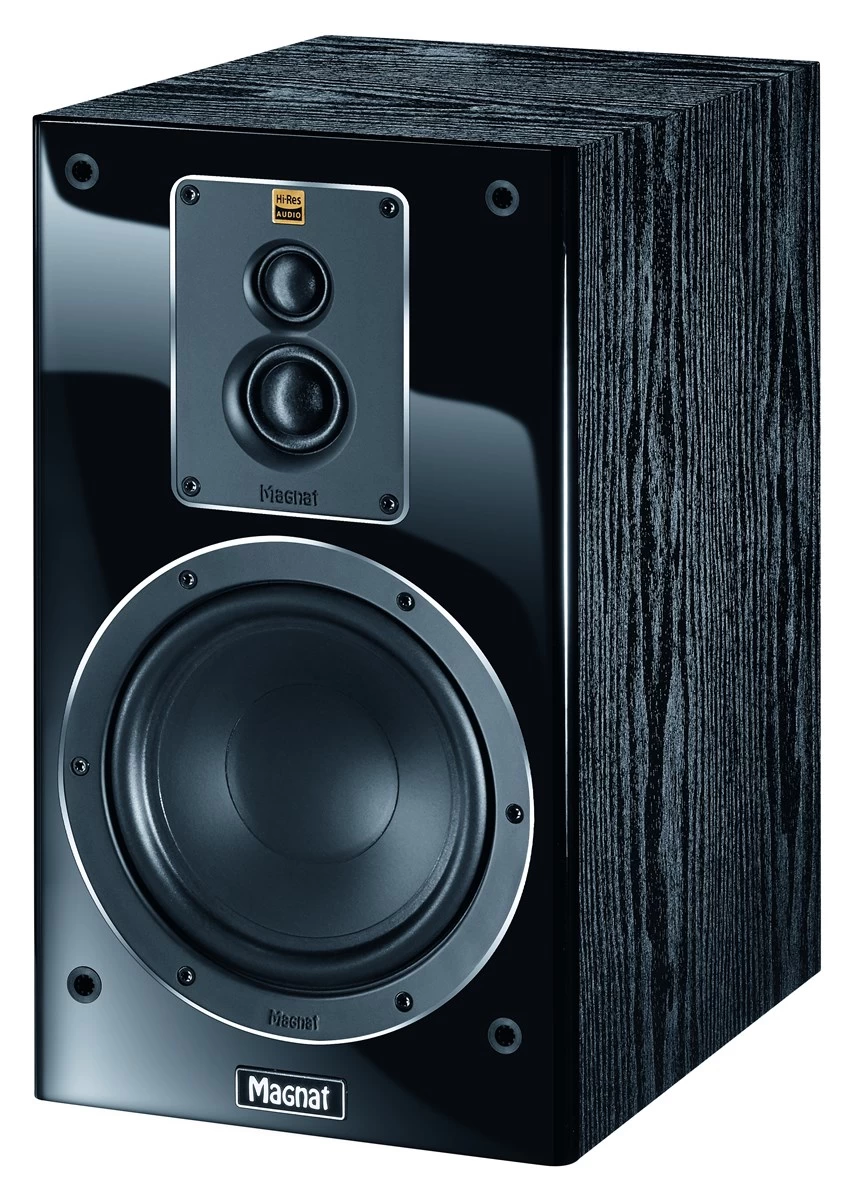

MAGNAT SIGNATURE 503 Black Plaukta akustiskā sistēma (cena par pāri)

3-WAY SHELF-TOP MODEL FOR ENTRY INTO THE SIGNATURE WORLD

• Hi-Res certified dual tweeter module with two fmax domes
• Three-way speaker with bass reflex technology
• Klippel-optimized bass-midrange unit
• Ventilated voice-coil unit for maximum resilience and dynamics

The Signature 503 is, as a shelf-top speaker, the most compact representative of the new 500 range. As a three-way system, it combines the hi-res dual tweeter module with a 17 cm bass-midrange unit. It unites all this in a footprint smaller than an A4 sheet of paper and a height of 365 mm. The sturdy MDF housing is available in two elegant finishes: black ash or mocha. It is just as practical as a compact stereo solution as it is when using it as a surround sound speaker in a home cinema set-up. Thanks to identical components like the front panel systems, it delivers an absolutely homogeneous soundscape. The Signature 503 is the best proof that perfect sound does not necessarily require huge speakers.

TWEETER & SUPER-TWEETER

• Powerful neodymium ring magnet systems for best dynamics
• Front panel with dedicated sound guidance for optimum dispersion properties
• Newly developed high-res tweeter module with two fmax dome tweeters
• 1.2" dome tweeter with extra-thick surround for low frequency coupling to the midrange
• Additional 20 mm super dome tweeter for ideal omnidirectional sound distribution and extended reproduction up to 50 kHz
• 30 mm dome tweeter with coupling volume, long-excursion drive and particularly wide surround for especially deep mid-tone coupling

MIDRANGE-WOOFER

• Solid decorative rings, fixed by six screws
• Klippel® optimised construction
• FE-Dynamics woofer-midrange
• coated paper cone
• Ventilated voice-coil unit for maximum capacity
• Solid metal basket with generous ventilation openings

CROSSOVER

• Amplitude and phase-optimised crossover with acoustical 24dB filters and high-quality components
• Big Bi-Wiring/Bi-Amping connecting terminal with big screw connectors and gold-plated contacts

CABINET

• High-gloss lacquered baffle (black version) or satin lacquered baffle (mocca version)
• Resonance-damping rubber feet included
• Removable cloth grille
• Airflex port with rounded reflex opening to minimize annoying resonances
• Solid low-resonance cabinet construction using E1-MDF panels
